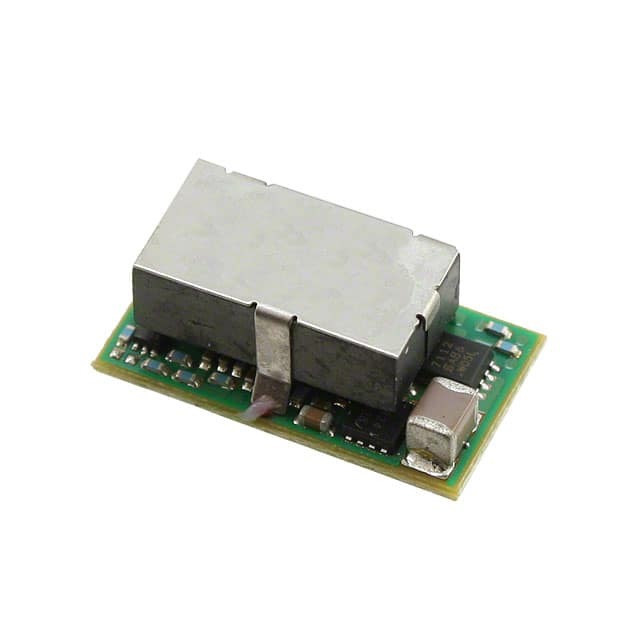

APTS012A0X3-SRDZ ABB Installation Products, Inc

APTS012A0X3-SRDZ

SKU: 95565

Manufacturer: ABB Installation Products, Inc

Module DC-DC 1-OUT 0.69V to 5.5V 12A 10-Pin SMT T/R

Request Free Samples

1340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

Type	Step Down
Number of Outputs	1
Isolation	Non-Isolated
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	14
Output Voltage (V)	0.69 to 5.5
Output Current (A)	12
Input/Output Type	DC/DC
Typical Standby Current (mA)	1.2
Switching Frequency (kHz)	500(Typ)
Switching Regulator	Yes
Load Regulation	10mV
Line Regulation	0.4%Vo
Efficiency (%)	94.3(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Product Weight (g)	3.68
Output Type	Adjustable
Original Package	SMT
Pin Count	10
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	8.5(Max)
Package Length	20.32
Package Width	11.43
