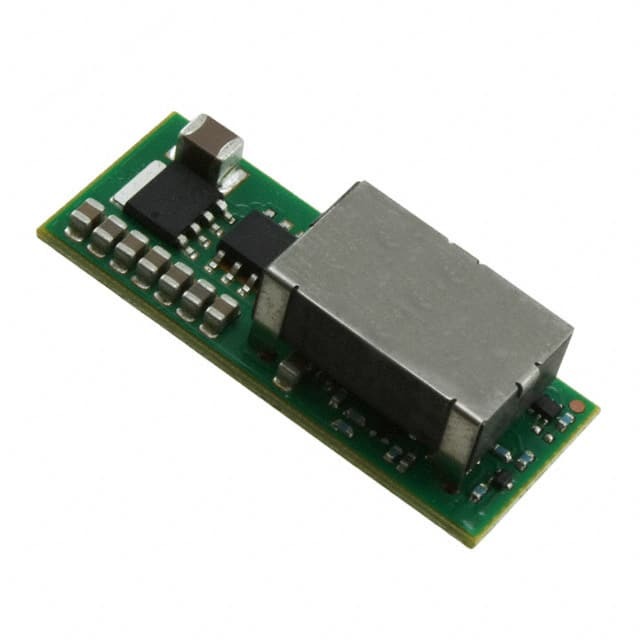

APTS020A0X43-SRZ ABB

APTS020A0X43-SRZ

SKU: 81428

Manufacturer: ABB

Module DC-DC 1-OUT 0.69V to 5.5V 20A 10-Pin SMD Module T/R

Download sample

Request Free Samples

880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Type	Step Down
Isolation	Non-Isolated
Number of Outputs	1
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	14
Output Voltage (V)	0.69 to 5.5
Output Current (A)	20
Input/Output Type	DC/DC
Typical Standby Current (mA)	3
Switching Frequency (kHz)	550(Typ)
Switching Regulator	Yes
Load Regulation	10mV
Line Regulation	0.4%Vo
Efficiency (%)	91.8(Typ)
On/Off Logic	Positive
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Product Weight (g)	6.05
Output Type	Adjustable
Original Package	SMD Module
Pin Count	10
Terminal Form	Surface Mount
Package Height	8.5(Max)
Package Length	33.02
Package Width	13.46
