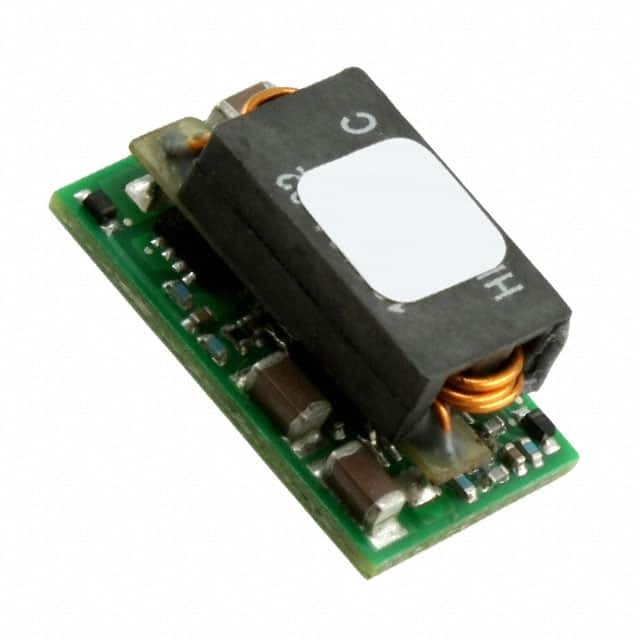

APXW005A0X3-SRZ ABB

APXW005A0X3-SRZ

SKU: 17896

Manufacturer: ABB

Module DC-DC 1-OUT 3V to 18V 5A 6-Pin SMD Module T/R

Download sample

Request Free Samples

3940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Non-Inverting
Number of Outputs	1
Isolation	Non-Isolated
Minimum Input Voltage (V)	9
Maximum Input Voltage (V)	36
Output Voltage (V)	3 to 18
Output Current (A)	5
Input/Output Type	DC/DC
Typical Standby Current (mA)	3
Switching Frequency (kHz)	300(Typ)
Switching Regulator	Yes
Load Regulation	0.4%Vo
Line Regulation	0.4%Vo
Efficiency (%)	95.9(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Product Weight (g)	3.49
Output Type	Adjustable
Original Package	SMD Module
Pin Count	6
Standard Package Method	SMD Module
Terminal Form	Surface Mount
Package Height	8.5(Max)
Package Length	20.32
Package Width	11.43
PCB changed	6
