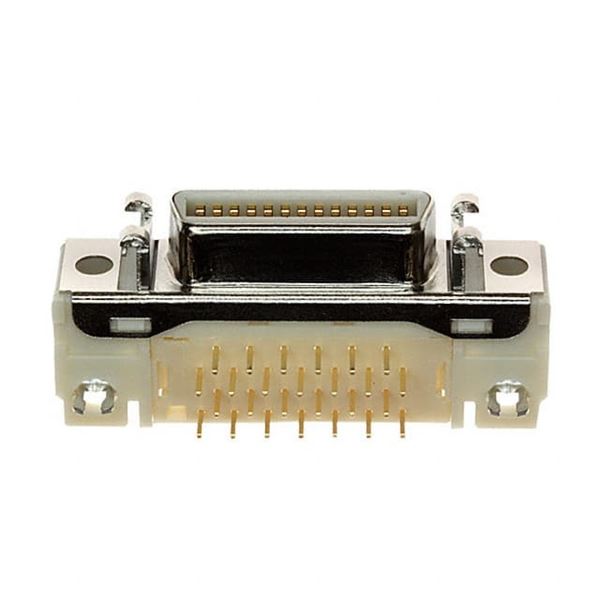

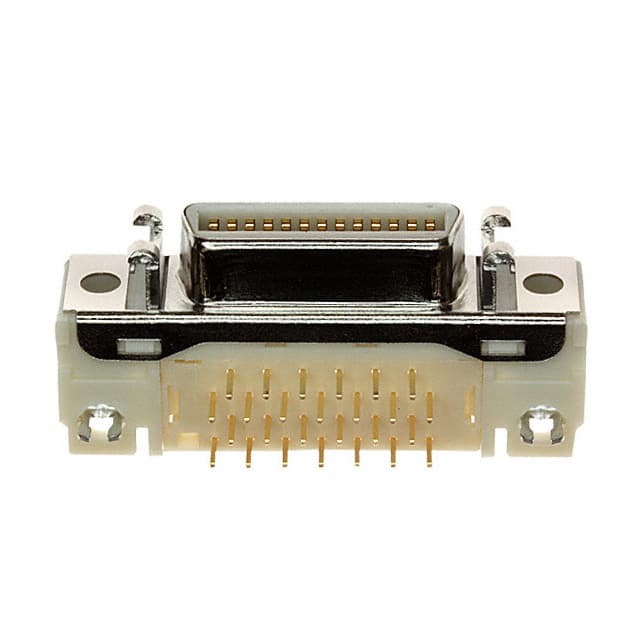

10226-55G3PC 3M

10226-55G3PC

SKU: 6596

Manufacturer: 3M

Conn Mini D Ribbon RCP 26 POS 1.27mm Solder RA Thru-Hole 26 Terminal 1 Port

Download sample

Request Free Samples

3100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Mini D Ribbon
Gender	RCP
Number of Terminals	26
Number of Contacts	26
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Right Angle
Current Rating-Max(A)	1
Insulation Resistance (MOhm)	500
Operating Temperature-Min	-55
Operating Temperature-Max	105
Length (mm)	37.2
Depth (mm)	16.7
Height (mm)	9.4
Contact Plating	Gold Over Nickel
Contact Body Material	Copper Alloy
