10214-6212PC 3M

10214-6212PC

SKU: 43935

Manufacturer: 3M

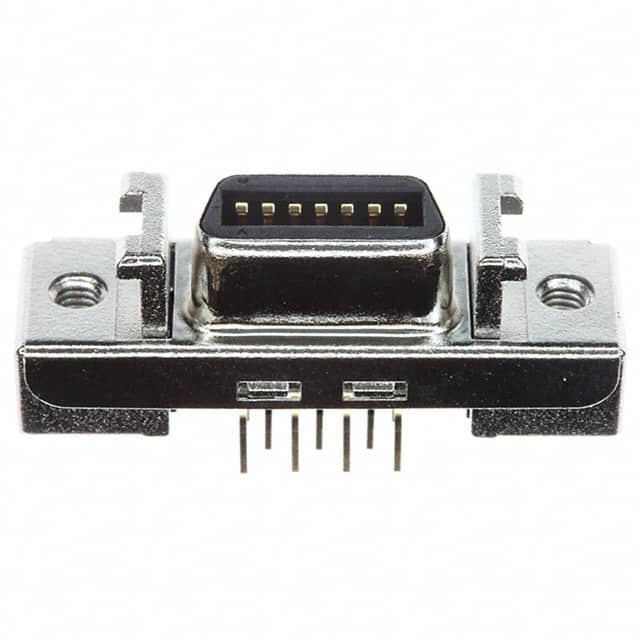

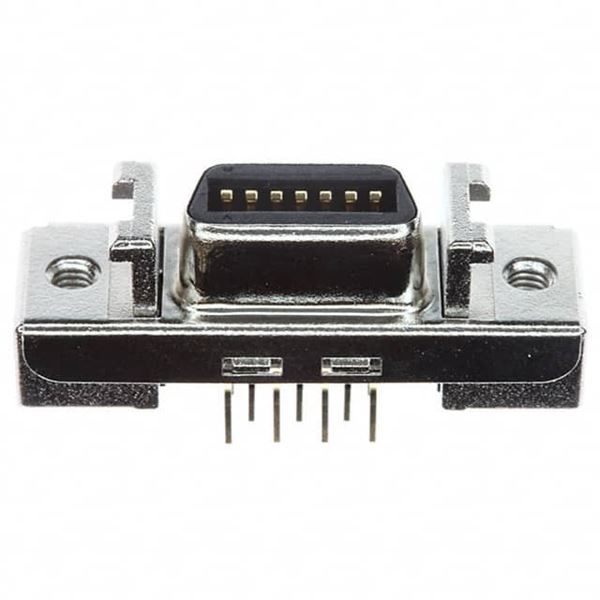

Conn Mini D Ribbon RCP 14 POS 1.27mm Solder ST Thru-Hole 14 Terminal 1 Port

Download sample

Request Free Samples

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Mini D Ribbon
Gender	RCP
Number of Terminals	14
Number of Contacts	14
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Straight
Current Rating-Max(A)	1
Insulation Resistance (MOhm)	500
Operating Temperature-Min	-20
Operating Temperature-Max	85
Length (mm)	29.5
Depth (mm)	9.1
Height (mm)	11
Terminal Form	Through Hole
Contact Plating	Gold Over Nickel
