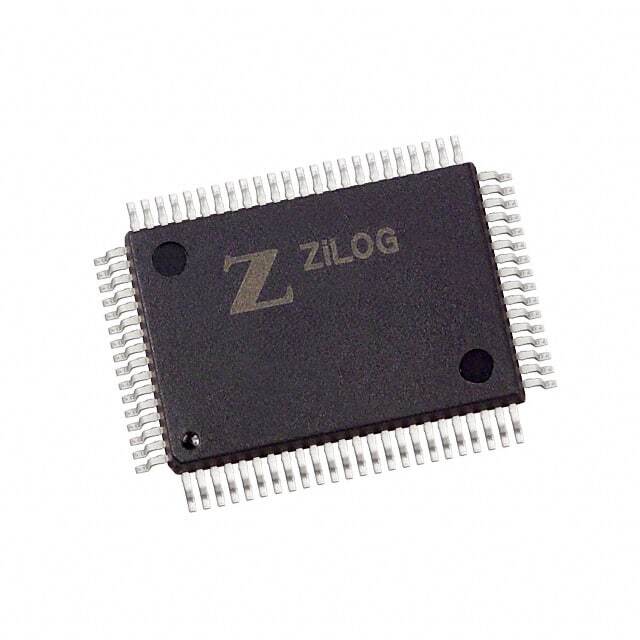

Z8F6423FT020SG

SKU: 123289

Manufacturer: Zilog

MCU 8-bit eZ8 CISC 64KB Flash 3.3V 80-Pin PQFP

1100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Family Name	Z8
Instruction Set Architecture	CISC
Device Core	eZ8
Core Architecture	Z8
Maximum CPU Frequency (MHz)	20
Maximum Clock Rate (MHz)	20
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	4KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	60
No. of Timers	4
PWM	1
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	10
USART	0
UART	2
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Maximum Power Dissipation (mW)	550
Operating Temperature-Min	0
Operating Temperature-Max	70
Original Package	PQFP
Pin Count	80
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	2.8(Max)
Package Length	20.1(Max)
Package Width	14.1(Max)
PCB changed	80
