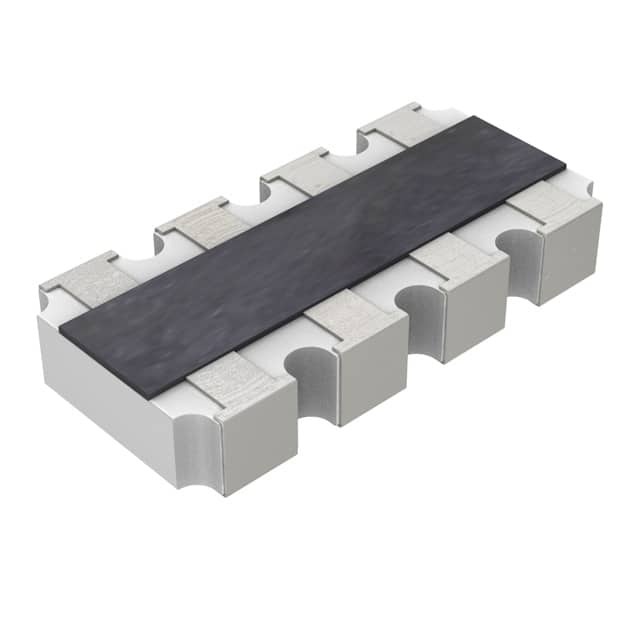

YC164-JR-074K7L

SKU: 135825

Manufacturer: Yageo

Res Thick Film Array 4.7K Ohm 5% ±200ppm/°C ISOL Epoxy 8-Pin 1206(4 X 0603) Convex SMD Automotive T/R

2250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.30
Automotive	Yes
PPAP	Yes
Type	Array
Number of Resistors	4
Resistance Value (Ohm)	4.7K
Tolerance	5%
Voltage Rating-Max (V)	50
Power Rating per Resistor (W)	0.063 (1/16)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	155
Temperature Coefficient (ppm/°C)	±200
Temperature Range @ Derated Power (°C)	70 to 155
Circuit Designator	ISOL
Special Features	High Reliability
Case Style	Epoxy
Case Size	1206
Case Size per Element	0603
Terminal Form	Convex
Number of Terminals	8
Terminal Pitch (mm)	0.8
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	1206(4 X 0603)
Length (mm)	3.2
Depth (mm)	1.6
Height (mm)	0.6
Length Tolerance (mm)	±0.15
Depth Tolerance (mm)	±0.15
Height Tolerance (mm)	±0.1
