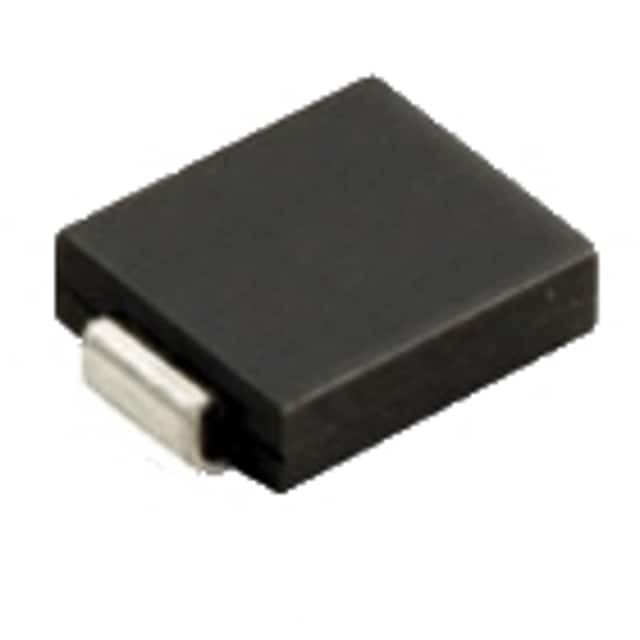

SMCJ190A

SKU: 23878

Manufacturer: Yageo

TVS Diode Single Uni-Dir 190V 1.5KW 2-Pin SMC T/R

2220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	211
Maximum Clamping Voltage (V)	308
Maximum Reverse Stand-Off Voltage (V)	190
Maximum Peak Pulse Current (A)	4.8
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SMC
Pin Count	2
Standard Package Method	DO-214-AB
Terminal Form	Surface Mount
Package Height	2.62(Max)
Package Length	7.11(Max)
Package Width	6.22(Max)
PCB changed	2
