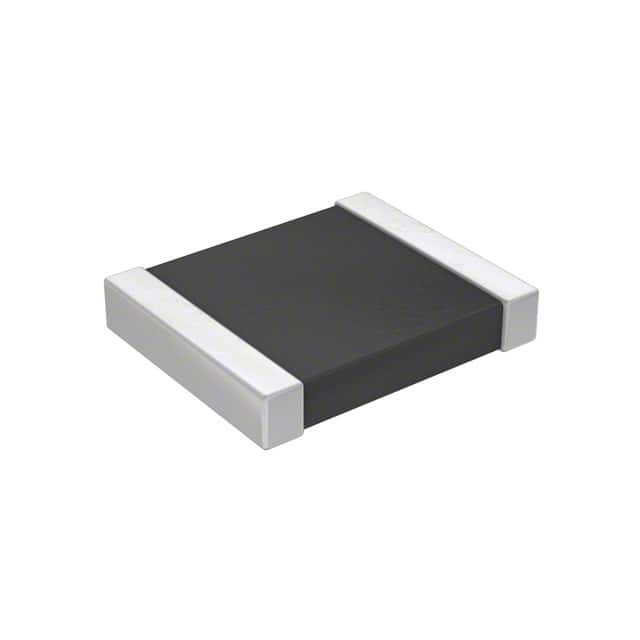

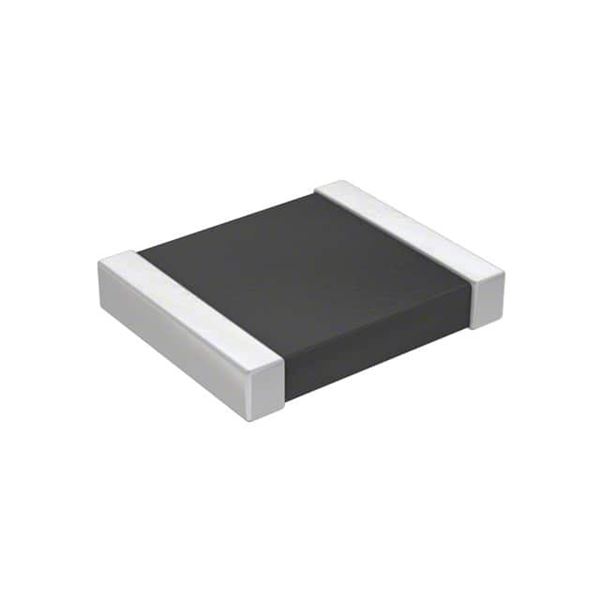

AC1210JR-074K7L

SKU: 51236

Manufacturer: Yageo

Res Thick Film 1210 4.7K Ohm 5% 0.5W(1/2W) ±100ppm/°C Pad SMD Automotive T/R

1920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.30
Automotive	Yes
PPAP	Yes
Resistance Value (Ohm)	4.7K
Tolerance	5%
Voltage Rating-Max (V)	200
Current Sensing	No
Power Rating (W)	0.5 (1/2)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	155
Temperature Coefficient (ppm/°C)	±100
Temperature Range @ Derated Power (°C)	70 to 155
Fail Safe Fusible Resistor	No
Anti-Surge	No
Anti-Sulfurated	No
Case Style	Epoxy
Case Size	1210
Terminal Form	Pad
Number of Terminals	2
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	1210
Length (mm)	3.1
Depth (mm)	2.6
Height (mm)	0.55
Length Tolerance (mm)	±0.1
Depth Tolerance (mm)	±0.15
Height Tolerance (mm)	±0.1
