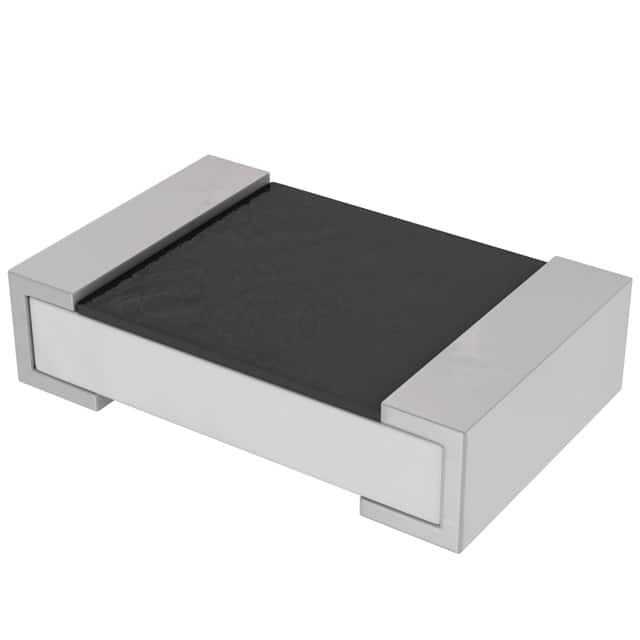

AC0805FR-07100RL

SKU: 44095

Manufacturer: Yageo

Res Thick Film 0805 100 Ohm 1% 0.125W(1/8W) ±100ppm/°C Pad SMD Automotive T/R

1300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.30
SVHC	Yes
Automotive	Yes
PPAP	Yes
Resistance Value (Ohm)	100
Tolerance	1%
Voltage Rating-Max (V)	150
Current Sensing	No
Power Rating (W)	0.125 (1/8)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	155
Temperature Coefficient (ppm/°C)	±100
Temperature Range @ Derated Power (°C)	70 to 155
Fail Safe Fusible Resistor	No
Anti-Surge	No
Anti-Sulfurated	No
Case Style	Epoxy
Case Size	0805
Terminal Form	Pad
Number of Terminals	2
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	0805
Length (mm)	2
Depth (mm)	1.25
Height (mm)	0.5
Length Tolerance (mm)	±0.1
Depth Tolerance (mm)	±0.1
Height Tolerance (mm)	±0.1
