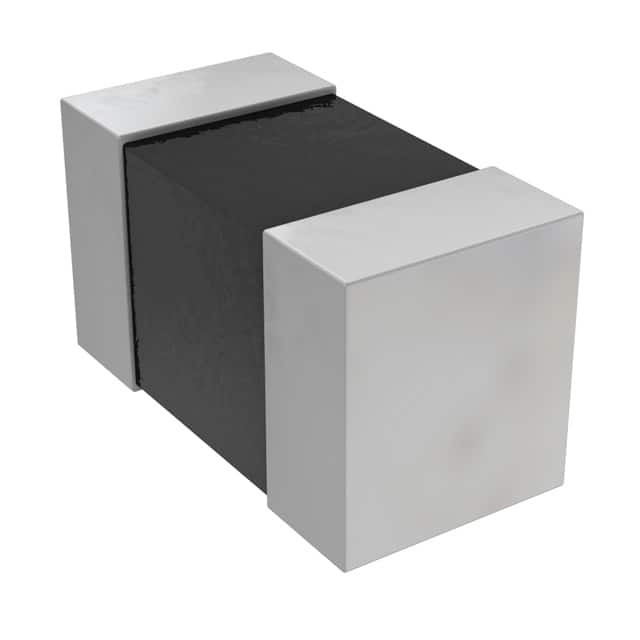

AC0201FR-0710KL

SKU: 17464

Manufacturer: Yageo

Res Thick Film 0201 10K Ohm 1% 0.05W(1/20W) ±200ppm/°C Pad SMD Automotive T/R

1250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.30
SVHC	Yes
Automotive	Yes
PPAP	Yes
Resistance Value (Ohm)	10K
Tolerance	1%
Voltage Rating-Max (V)	25
Current Sensing	No
Power Rating (W)	0.05 (1/20)
Technology	Thick Film
Operating Temperature-Min	-55
Operating Temperature-Max	155
Temperature Coefficient (ppm/°C)	±200
Temperature Range @ Derated Power (°C)	70 to 155
Fail Safe Fusible Resistor	No
Anti-Surge	No
Anti-Sulfurated	No
Case Style	Epoxy
Case Size	0201
Terminal Form	Pad
Number of Terminals	2
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	0201
Length (mm)	0.6
Depth (mm)	0.3
Height (mm)	0.23
Length Tolerance (mm)	±0.03
Depth Tolerance (mm)	±0.03
Height Tolerance (mm)	±0.03
