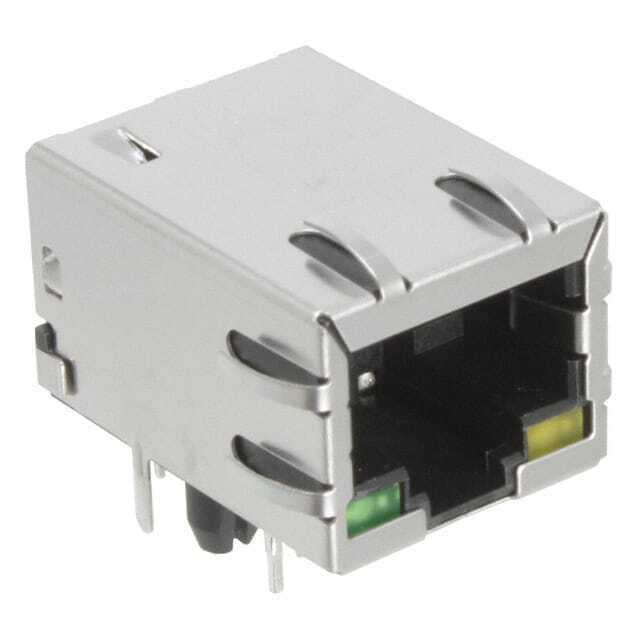

RB1-125BAG1A

SKU: 98876

Manufacturer: WIZnet

Conn RJ-45 F 8 POS 1.27mm Solder RA Thru-Hole 12 Terminal 1 Port

2870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Type	RJ-45
Gender	F
Number of Terminals	12
Number of Contacts	8
Number of Ports	1
Number of Loaded Positions	8
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Right Angle
Insulation Resistance (MOhm)	500
Left/Right LED Color	Green/Yellow
Mating Cycle (Cycles)	2500
Integrated Magnetics	Yes
Shell Body Material	Stainless Steel
Operating Temperature-Min	0
Shielding	Yes
Operating Temperature-Max	70
Product Style	Single
Length (mm)	15.75
Depth (mm)	21.78
Height (mm)	13.55
Number of Cores per Jack	4
Ethernet Speed	100BASE-TX
Spring Option	Yes
Tab Direction	Down
Distance Between Begs (mm)	15.55
Distance Between Shield Pins (mm)	11.43
