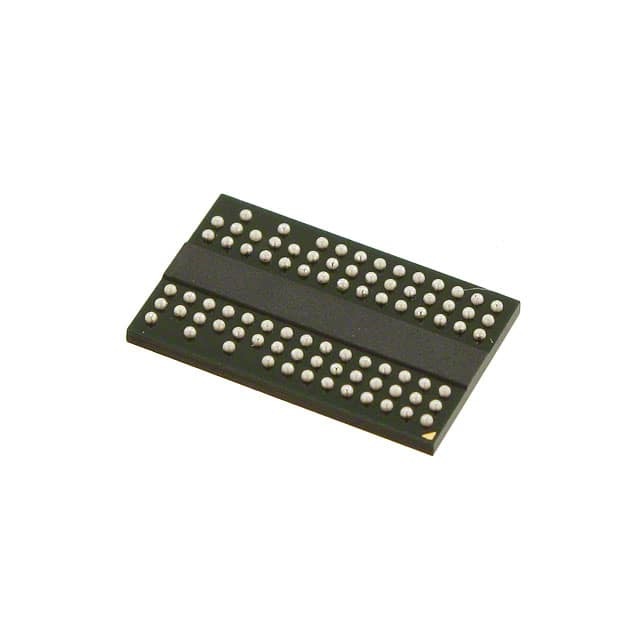

W9725G6KB-25

SKU: 100329

Manufacturer: Winbond Electronics

DRAM Chip DDR2 SDRAM 256Mbit 16Mx16 1.8V 84-Pin WBGA

74050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.24
Automotive	No
PPAP	No
DRAM Type	DDR2 SDRAM
Chip Density (bit)	256M
Organization	16Mx16
Number of Internal Banks	4
Number of Words per Bank	4M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	800
Maximum Access Time (ns)	0.4
Address Bus Width (bit)	15
Interface Type	SSTL_18
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.9
Operating Current (mA)	110
Operating Temperature-Min	0
Operating Temperature-Max	85
Number of I/O Lines (bit)	16
Original Package	WBGA
Pin Count	84
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	12.5
Package Width	8
PCB changed	84
