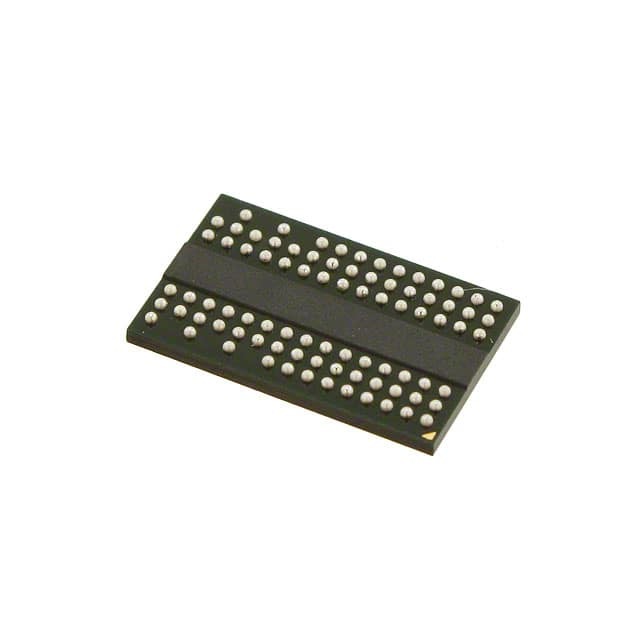

W971GG6NB-25

SKU: 123257

Manufacturer: Winbond Electronics

DRAM Chip DDR2 SDRAM 1Gbit 64Mx16 1.8V 84-Pin VFBGA

10560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.32
DRAM Type	DDR2 SDRAM
Chip Density (bit)	1G
Organization	64Mx16
Number of Internal Banks	8
Number of Words per Bank	8M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	800
Maximum Access Time (ns)	0.4
Address Bus Width (bit)	16
Interface Type	SSTL_18
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.9
Operating Current (mA)	110
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Number of I/O Lines (bit)	16
Original Package	VFBGA
Pin Count	84
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.6(Max)
Package Length	12.5
Package Width	8
PCB changed	84
