W631GG8MB-12

SKU: 52687

Manufacturer: Winbond Electronics

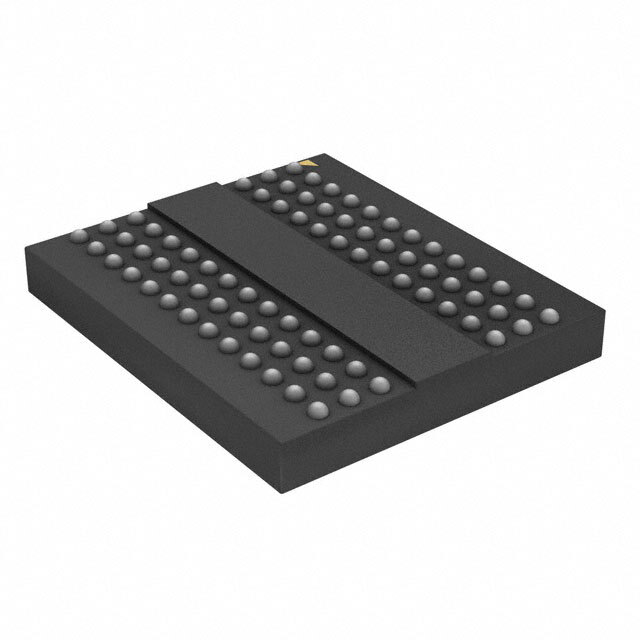

DRAM Chip DDR3 SDRAM 1Gbit 128Mx8 1.5V 78-Pin VFBGA

2220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.32
Automotive	No
PPAP	No
DRAM Type	DDR3 SDRAM
Chip Density (bit)	1G
Organization	128Mx8
Number of Internal Banks	8
Number of Words per Bank	16M
Number of Bits/Word (bit)	8
Data Bus Width (bit)	8
Maximum Clock Rate (MHz)	1600
Maximum Access Time (ns)	0.225
Address Bus Width (bit)	17
Interface Type	SSTL_15
Operating Supply Voltage-Min (V)	1.425
Typical Operating Supply Voltage (V)	1.5
Operating Supply Voltage-Max (V)	1.575
Operating Current (mA)	150
Operating Temperature-Min	0
Operating Temperature-Max	95
Supplier Temperature Grade	Commercial
Number of I/O Lines (bit)	8
Original Package	VFBGA
Pin Count	78
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Length	10.5
Package Width	8
PCB changed	78
