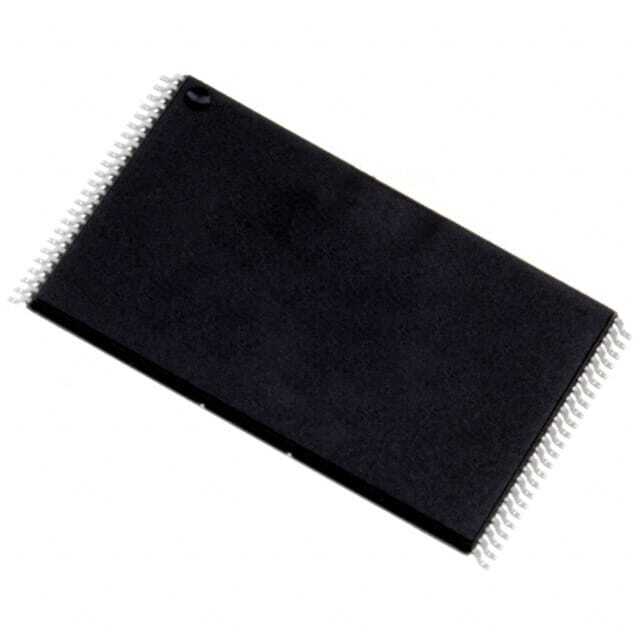

W29N01HVSINF

SKU: 79102

Manufacturer: Winbond Electronics

SLC NAND Flash Parallel 3V/3.3V 1G-bit 128M x 8 48-Pin TSOP-I

320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991b.1.a.
Part Status	Active
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	SLC NAND
Chip Density (bit)	1G
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	28
Sector Size	128Kbyte x 1024
Page Size	2Kbyte
Number of Bits/Word (bit)	8
Number of Words	128M
Programmability	Yes
Timing Type	Asynchronous
Maximum Erase Time (s)	0.01/Block
Maximum Programming Time (ms)	0.7/Page
Interface Type	Parallel
Maximum Operating Frequency (MHz)	40
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	2.7 to 3.6
Operating Current (mA)	35
Program Current (mA)	35
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	No
ECC Support	Yes
Support of Page Mode	Yes
Minimum Endurance (Cycles)	100000
Original Package	TSOP-I
Pin Count	48
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	12
Package Width	18.4
PCB changed	48
