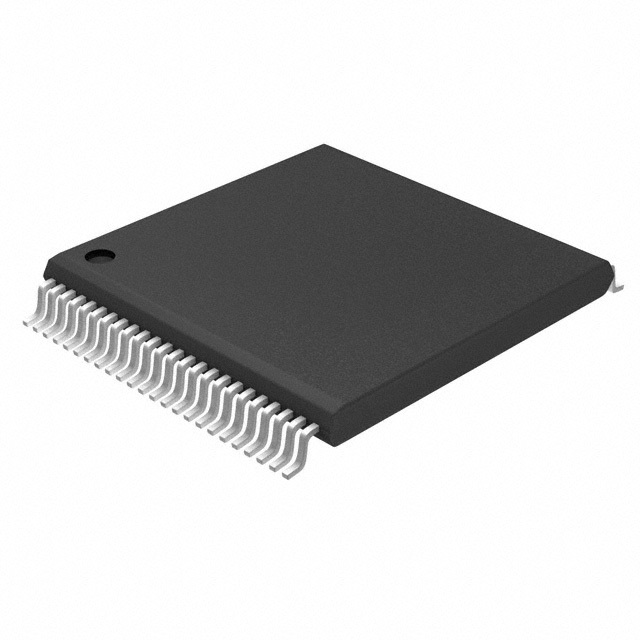

W29N01GVSIAA

SKU: 86226

Manufacturer: Winbond Electronics

NAND Flash Parallel 3V/3.3V 1G-bit 128M x 8 25ns 48-Pin TSOP-I

1310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.1.a
Part Status	Obsolete
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	NAND
Chip Density (bit)	1G
Block Organization	Symmetrical
Address Bus Width (bit)	28
Page Size	2Kbyte
Number of Bits/Word (bit)	8
Number of Words	128M
Programmability	Yes
Timing Type	Synchronous
Max. Access Time (ns)	25
Maximum Erase Time (s)	0.01/Block
Maximum Programming Time (ms)	0.7/Page
Interface Type	Serial
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	2.7 to 3.6
Operating Current (mA)	35
Program Current (mA)	35
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
ECC Support	Yes
Minimum Endurance (Cycles)	100000
Original Package	TSOP-I
Pin Count	48
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	12
Package Width	18.4
PCB changed	48
