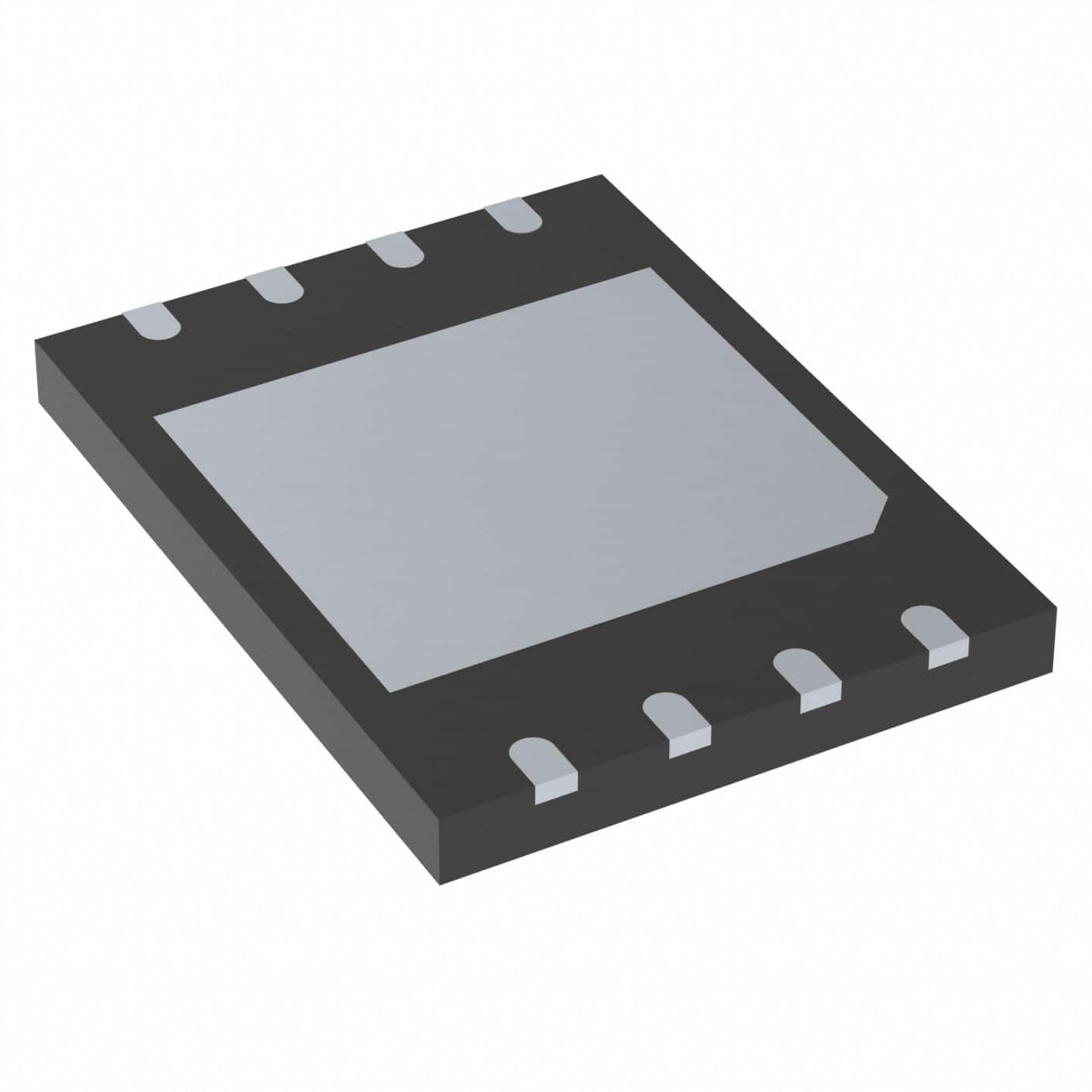

W25N01GVZEIG

SKU: 51007

Manufacturer: Winbond Electronics

SLC NAND Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 1G-bit 128M x 8 7ns 8-Pin WSON EP Tray

8040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991b.1.a.
Part Status	Active
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	SLC NAND
Chip Density (bit)	1G
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	32
Sector Size	128Kbyte x 1024
Page Size	2Kbyte
Number of Bits/Word (bit)	8
Number of Words	128M
Programmability	Yes
Timing Type	Synchronous
Max. Access Time (ns)	7
Maximum Erase Time (s)	0.01/Block
Maximum Programming Time (ms)	0.7/Page
Interface Type	Serial (SPI, Dual SPI, Quad SPI)
Maximum Operating Frequency (MHz)	104
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	2.7 to 3.6
Operating Current (mA)	35
Program Current (mA)	35
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	Yes
ECC Support	Yes
Support of Page Mode	Yes
Minimum Endurance (Cycles)	100000
Packing Method	Tray
Original Package	WSON EP
Pin Count	8
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.73
Package Length	6
Package Width	8
PCB changed	8
