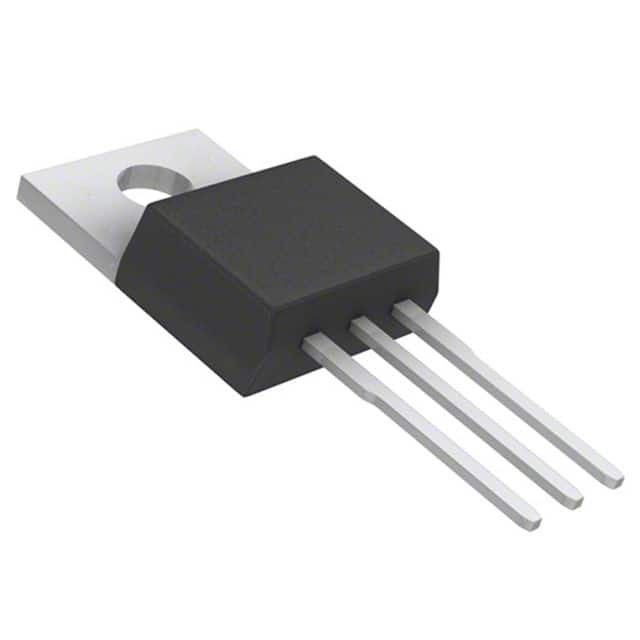

BYV32E-200PQ

SKU: 79597

Manufacturer: WeEn Semiconductors

Rectifier Diode Switching 200V 20A 25ns 3-Pin(3+Tab) TO-220AB Rail

3000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Type	Switching Diode
Maximum DC Reverse Voltage (V)	200
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	20
Peak Non-Repetitive Surge Current (A)	125
Peak Forward Voltage (V)	1.15
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	25
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Rail
Original Package	TO-220AB
Pin Count	3
Terminal Form	Through Hole
Package Height	9.4(Max)
Package Length	10.3(Max)
Package Width	4.5(Max)
PCB changed	3
