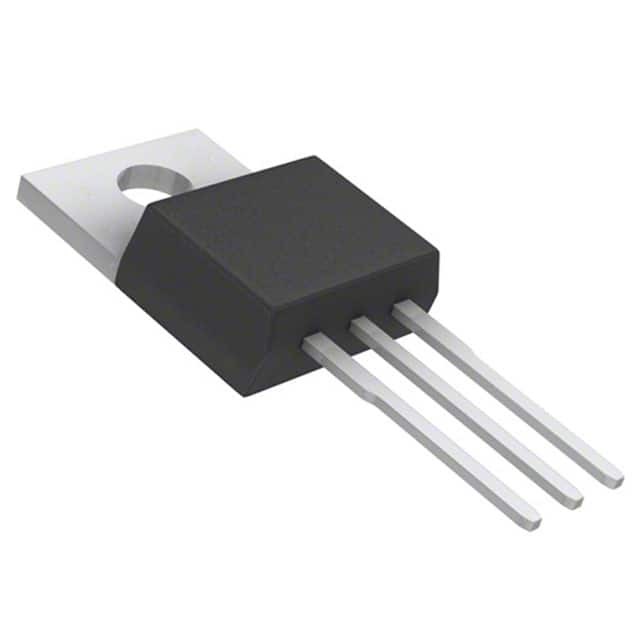

BTA425Y-800BTQ

SKU: 124249

Manufacturer: WeEn Semiconductors

TRIAC Diode 800V 25A(RMS) 275A 3-Pin(3+Tab) TO-220AB Rail

3120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	Unknown
PPAP	Unknown
Maximum Rate of Rise of Off-State Voltage (V/us)	2000(Min)
Maximum Rate of Rise of On-State Current (A/us)	100
Maximum Gate Trigger Voltage (V)	1.3
Maximum Gate Trigger Current (mA)	50
Surge Current Rating (A)	275
Maximum Holding Current (mA)	75
Repetitive Peak Reverse Voltage (V)	800
Peak On-State Voltage (V)	1.5@35A
Repetitive Peak Forward Blocking Voltage (V)	800
RMS On-State Current (A)	25
Repetitive Peak Off-State Current (mA)	2
AC Switch	No
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Rail
Original Package	TO-220AB
Pin Count	3
Terminal Form	Through Hole
Package Height	16(Max) - 6.5
Package Length	10.3(Max)
Package Width	4.7(Max)
PCB changed	3
