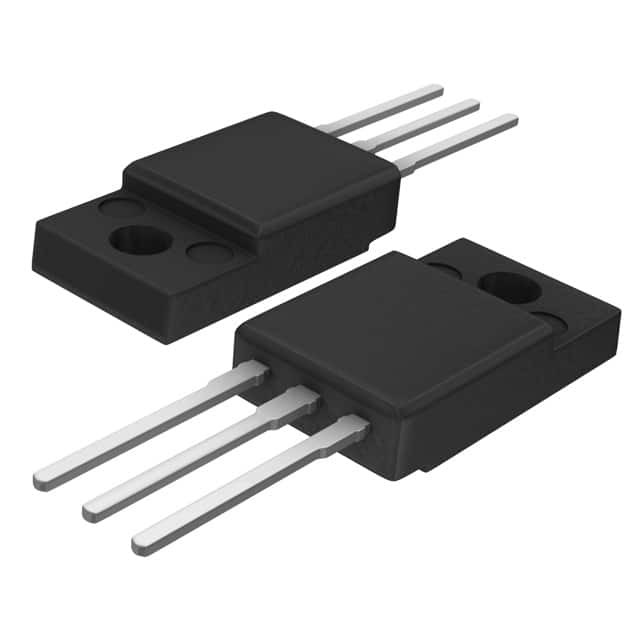

BT258X-600R WeEn Semiconductors

BT258X-600R

SKU: 102938

Manufacturer: WeEn Semiconductors

Thyristor SCR 600V 82A 3-Pin(3+Tab) TO-220F

Download sample

Request Free Samples

1200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
HTS	8541.30.00.80
Automotive	Unknown
PPAP	Unknown
Maximum Gate Trigger Voltage (V)	1.5
Maximum Gate Trigger Current (mA)	0.2
Surge Current Rating (A)	82
Maximum Holding Current (mA)	6
Repetitive Peak Reverse Voltage (V)	600
Maximum Gate Peak Inverse Voltage (V)	5
Peak On-State Voltage (V)	1.6@16A
Repetitive Peak Forward Blocking Voltage (V)	600
Rated Average On-State Current (A)	5
Repetitive Peak Off-State Current (mA)	0.5
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	TO-220F
Pin Count	3
Terminal Form	Through Hole
Package Height	15.8(Max)
Package Length	10.3(Max)
Package Width	4.6(Max)
PCB changed	3
