BT258S-800R WeEn Semiconductors

BT258S-800R

SKU: 46537

Manufacturer: WeEn Semiconductors

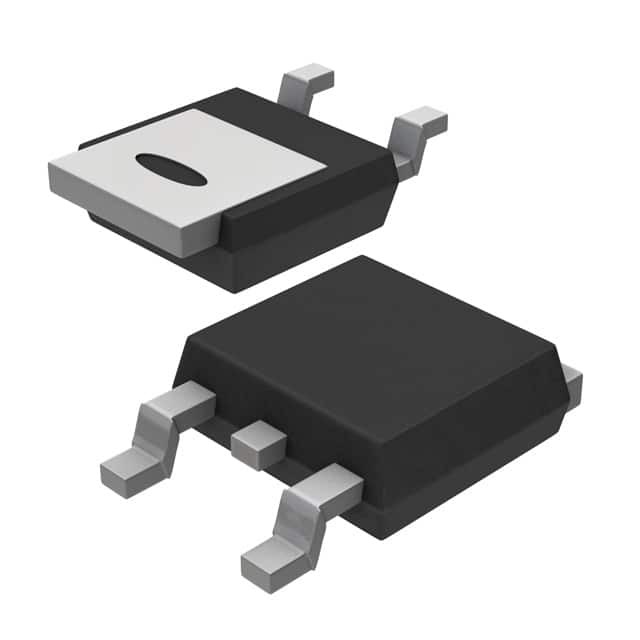

Thyristor SCR 800V 82A 3-Pin(2+Tab) DPAK

Download sample

Request Free Samples

4000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Maximum Rate of Rise of Off-State Voltage (V/us)	100(Typ)
Maximum Rate of Rise of On-State Current (A/us)	50
Maximum Gate Trigger Voltage (V)	1
Maximum Gate Trigger Current (mA)	0.2
Surge Current Rating (A)	82
Maximum Holding Current (mA)	6
Repetitive Peak Reverse Voltage (V)	800
Maximum Gate Peak Inverse Voltage (V)	5
Peak On-State Voltage (V)	1.6@16A
Repetitive Peak Forward Blocking Voltage (V)	800
Rated Average On-State Current (A)	5
Repetitive Peak Off-State Current (mA)	0.5
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	DPAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	2.38(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
