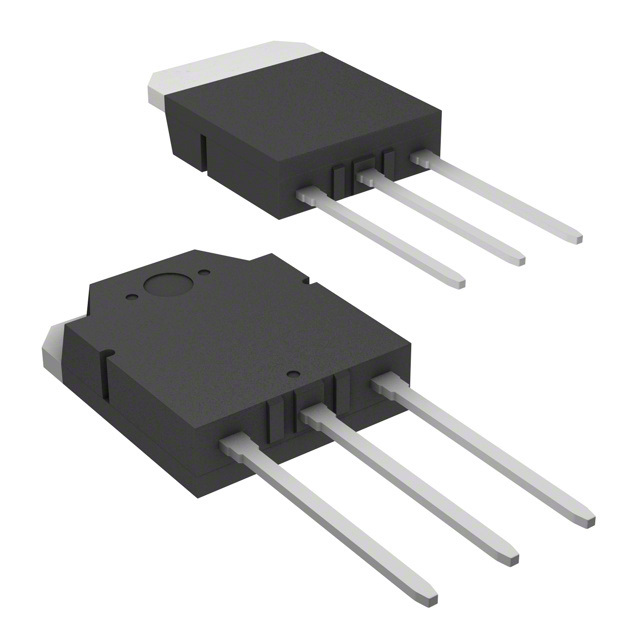

BT155Z-1200T WeEn Semiconductors

BT155Z-1200T

SKU: 18204

Manufacturer: WeEn Semiconductors

SCR Diode 1200V 79A(RMS) 715A 3-Pin(3+Tab) TO-3P

Download sample

Request Free Samples

560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	1000(Min)
Maximum Rate of Rise of On-State Current (A/us)	150
Maximum Gate Trigger Voltage (V)	1
Maximum Gate Trigger Current (mA)	50
Surge Current Rating (A)	715
Maximum Holding Current (mA)	200
Repetitive Peak Reverse Voltage (V)	1200
Maximum Gate Peak Inverse Voltage (V)	5
Peak On-State Voltage (V)	1.5@90A
Repetitive Peak Forward Blocking Voltage (V)	1200
Rated Average On-State Current (A)	50
RMS On-State Current (A)	79
Repetitive Peak Off-State Current (mA)	3
Maximum Latching Current (mA)	300
Peak Gate Power Dissipation (W)	20
Average Gate Power Dissipation (W)	1
Circuit Fusing Consideration (A²S)	2113
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	TO-3P
Pin Count	3
Terminal Form	Through Hole
Package Height	12.85(Max)
Package Length	15.5(Max)
Package Width	4.95(Max)
PCB changed	3
