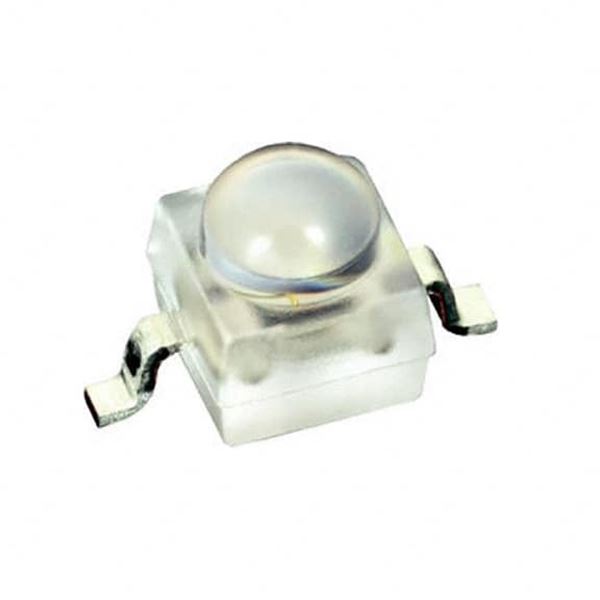

VSMY2853G

SKU: 72072

Manufacturer: Vishay

Infrared Emitter 850nm 35mW/sr Circular Top Mount 2-Pin SMD T/R

3350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Peak Wavelength (nm)	850
LED Body Material	GaAlAs
Lens Dimensions (mm)	1.8x1.8x0.95
Intensity	35mW/sr
Luminous Flux	55mW
Viewing Angle (°)	56
Maximum Forward Voltage (V)	1.9
Reverse Voltage (V)	5
Maximum Forward Current (mA)	100
Test Current (mA)	100
Maximum Power Dissipation (mW)	190
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
High Brightness	Yes
High Power	Yes
Lens Shape Type	Circular
Mounting Orientation	Top Mount
Original Package	SMD
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	2.55
Package Length	2.3
Package Width	2.3
PCB changed	2
