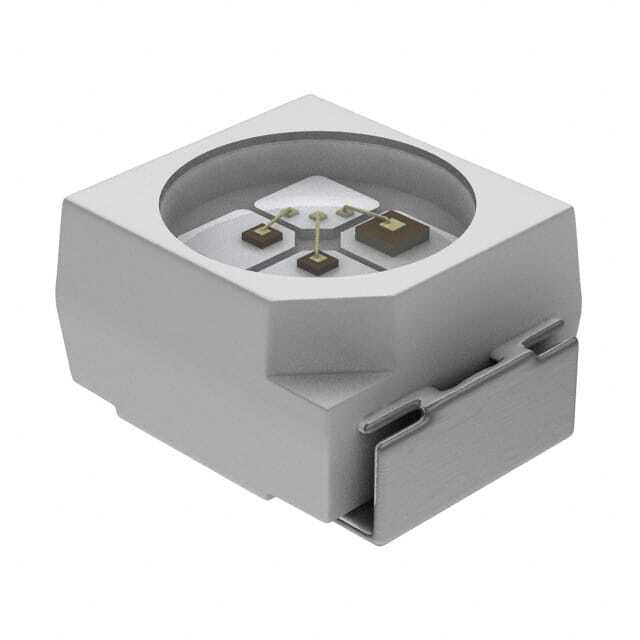

VSMS3700-GS08

SKU: 86214

Manufacturer: Vishay

Infrared Emitter 950nm 35mW/sr Circular Top Mount Automotive 2-Pin PLCC T/R

2050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.40.20.00
Automotive	Yes
PPAP	Unknown
Peak Wavelength (nm)	950
LED Body Material	GaAs
Lens Dimensions (mm)	2.4x2.4x0.85
Intensity	35mW/sr
Viewing Angle (°)	120
Maximum Forward Voltage (V)	1.7
Reverse Voltage (V)	5
Maximum Forward Current (mA)	100
Maximum Reverse Current (uA)	100
Test Current (mA)	100
Maximum Power Dissipation (mW)	170
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
High Brightness	No
High Power	Yes
Lens Shape Type	Circular
Mounting Orientation	Top Mount
Original Package	PLCC
Pin Count	2
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Length	3
Package Width	2.8
PCB changed	2
