    VS-T20HF220

    SKU: 15515
    Manufacturer: Vishay

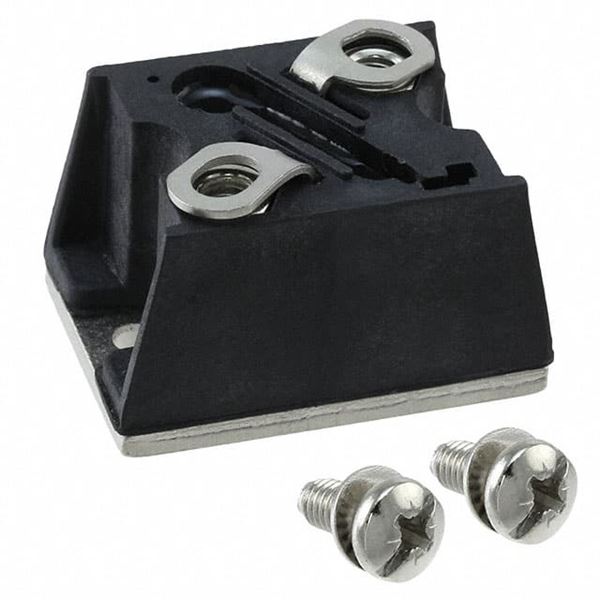

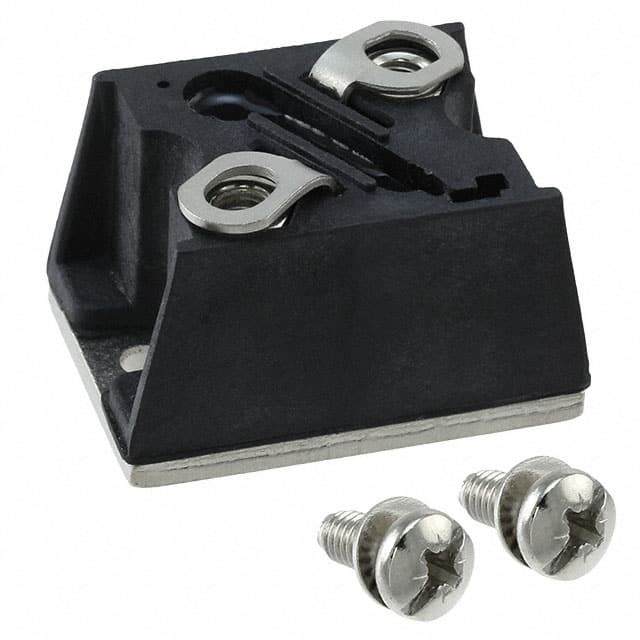

    Diode 2.2KV 20A 2-Pin Case D-55
    2180 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Configuration Single
    Peak Reverse Repetitive Voltage (V) 2200
    Maximum Continuous Forward Current (A) 20
    Peak Non-Repetitive Surge Current (A) 470
    Peak Forward Voltage (V) 1.5@60A
    Peak Reverse Current (uA) 18000
    Operating Temperature-Min -40
    Operating Temperature-Max 150
    Original Package Case D-55
    Pin Count 2
    Terminal Form Screw
    Package Height 23.5
    Package Length 41(Max)
    Package Width 27
