VS-E5TX3012-N3

SKU: 149986

Manufacturer: Vishay

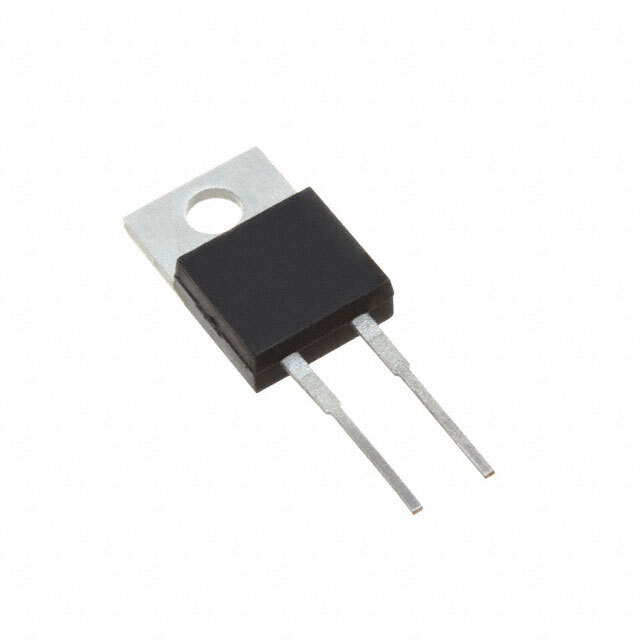

Rectifier Diode Switching 1.2KV 30A 100ns 2-Pin(2+Tab) TO-220AC Tube

2850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	1200
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1200
Maximum Continuous Forward Current (A)	30
Peak Non-Repetitive Surge Current (A)	210
Peak Forward Voltage (V)	3.15
Peak Reverse Current (uA)	50
Peak Reverse Recovery Time (ns)	100(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Original Package	TO-220AC
Pin Count	2
Terminal Form	Through Hole
Package Height	9.02(Max)
Package Length	10.51(Max)
Package Width	4.65(Max)
PCB changed	2
