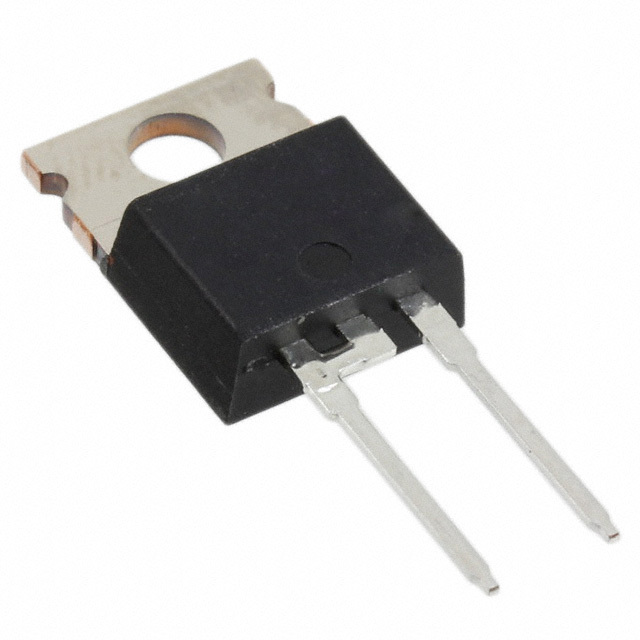

VS-8ETU04HN3

SKU: 58053

Manufacturer: Vishay

Rectifier Diode Switching 400V 8A 60ns Automotive 2-Pin(2+Tab) TO-220AC Tube

3020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	Yes
PPAP	Unknown
Type	Switching Diode
Maximum DC Reverse Voltage (V)	400
Configuration	Single
Peak Reverse Repetitive Voltage (V)	400
Maximum Continuous Forward Current (A)	8
Peak Non-Repetitive Surge Current (A)	100
Peak Forward Voltage (V)	1.3
Peak Reverse Current (uA)	10
Peak Reverse Recovery Time (ns)	60
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tube
Supplier Temperature Grade	Automotive
Original Package	TO-220AC
Pin Count	2
Terminal Form	Through Hole
Package Height	9.02(Max)
Package Length	10.51(Max)
Package Width	4.65(Max)
PCB changed	2
