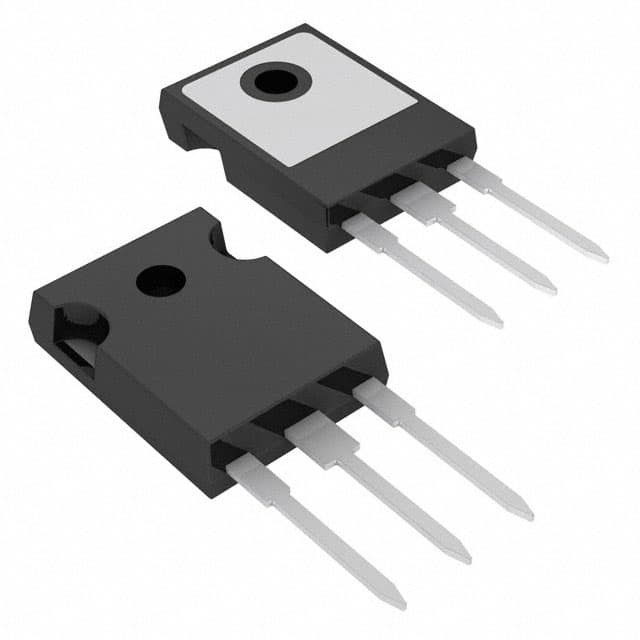

VS-80APS08-M3

SKU: 107346

Manufacturer: Vishay

Rectifier Diode Switching 800V 80A 3-Pin(3+Tab) TO-247AC Tube

3050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	800
Configuration	Single Dual Anode
Peak Reverse Repetitive Voltage (V)	800
Maximum Continuous Forward Current (A)	80
Peak Non-Repetitive Surge Current (A)	1500
Peak Forward Voltage (V)	1.17
Peak Reverse Current (uA)	100
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247AC
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.7(Max)
Package Length	15.87(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
