VS-60CPF12PBF

SKU: 52674

Manufacturer: Vishay

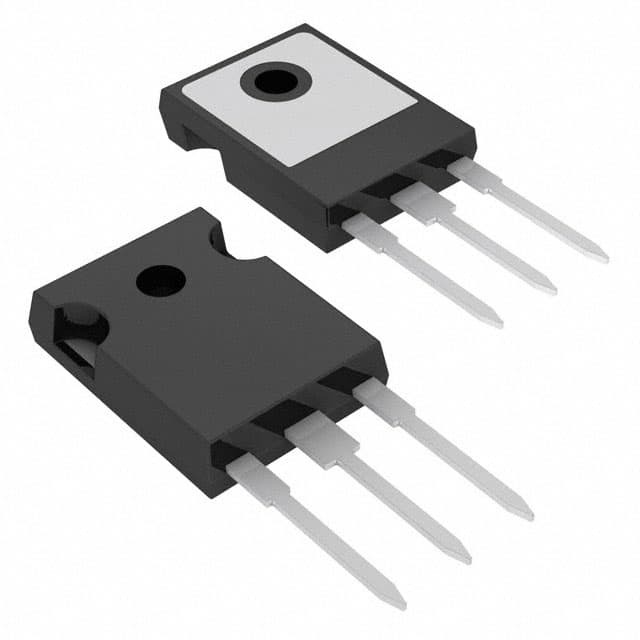

Rectifier Diode Switching 1.2KV 60A 480ns 3-Pin(3+Tab) TO-247AC

860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	1200
Configuration	Single Dual Anode
Peak Reverse Repetitive Voltage (V)	1200
Maximum Continuous Forward Current (A)	60
Peak Non-Repetitive Surge Current (A)	830
Peak Forward Voltage (V)	1.4
Peak Reverse Current (uA)	100
Peak Reverse Recovery Time (ns)	480
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	TO-247AC
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.7(Max)
Package Length	15.87(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
