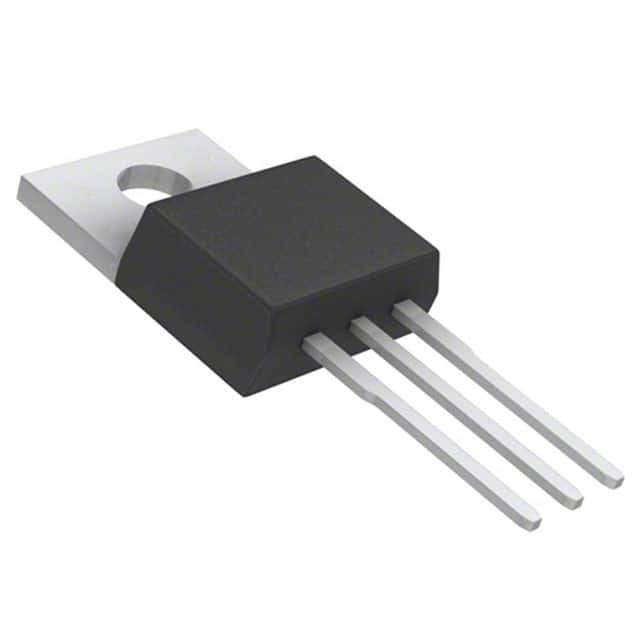

VS-40TTS12-M3

SKU: 144532

Manufacturer: Vishay

SCR 1200V 40A(RMS) 350A 3-Pin(3+Tab) TO-220AB Tube

4400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	500
Maximum Rate of Rise of On-State Current (A/us)	150
Maximum Gate Trigger Voltage (V)	1.3
Maximum Gate Trigger Current (mA)	35
Surge Current Rating (A)	350
Maximum Holding Current (mA)	100
Repetitive Peak Reverse Voltage (V)	1200
Peak On-State Voltage (V)	1.6@80A
Repetitive Peak Forward Blocking Voltage (V)	1200
Rated Average On-State Current (A)	25
RMS On-State Current (A)	40
Repetitive Peak Off-State Current (mA)	0.5
Maximum Latching Current (mA)	200
Peak Gate Power Dissipation (W)	8
Average Gate Power Dissipation (W)	2
Circuit Fusing Consideration (A²S)	630
Phase Control	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	140
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.02(Max)
Package Length	10.51(Max)
Package Width	4.65(Max)
PCB changed	3
Tab	Tab
