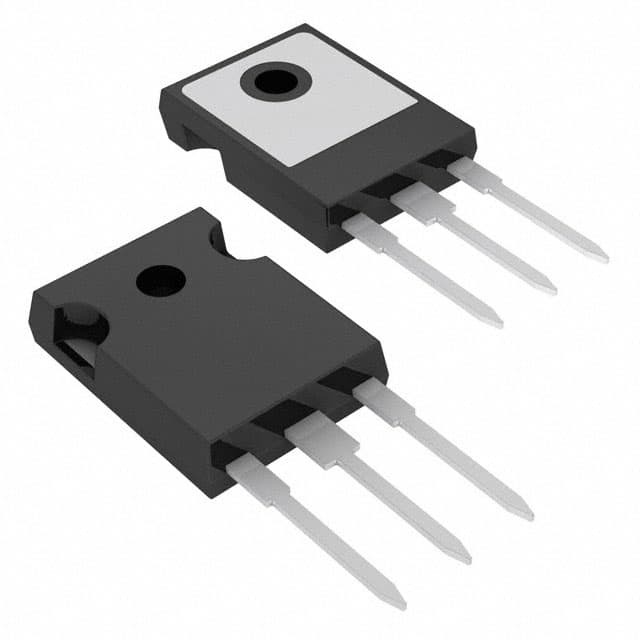

VS-40TPS16PBF

SKU: 59790

Manufacturer: Vishay

SCR 1600V 55A(RMS) 500A 3-Pin(3+Tab) TO-247AC Tube

2430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	1000
Maximum Rate of Rise of On-State Current (A/us)	100
Maximum Gate Trigger Voltage (V)	2.5
Maximum Gate Trigger Current (mA)	150
Surge Current Rating (A)	500
Maximum Holding Current (mA)	200
Repetitive Peak Reverse Voltage (V)	1600
Maximum Gate Peak Inverse Voltage (V)	10
Peak On-State Voltage (V)	1.85@110A
Repetitive Peak Forward Blocking Voltage (V)	1600
Rated Average On-State Current (A)	35
RMS On-State Current (A)	55
Repetitive Peak Off-State Current (mA)	0.5
Phase Control	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	TO-247AC
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.7(Max)
Package Length	15.87(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
