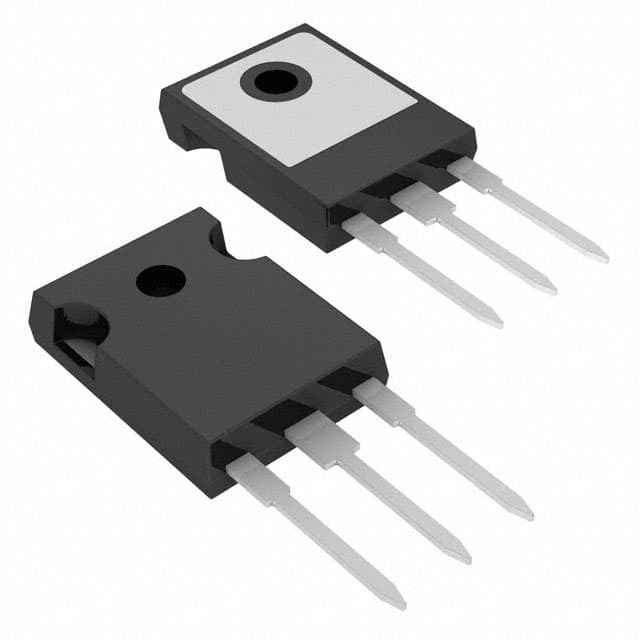

VS-40CPQ060-N3

SKU: 158759

Manufacturer: Vishay

Rectifier Diode Schottky 60V 40A 3-Pin(3+Tab) TO-247AC

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	60
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	60
Maximum Continuous Forward Current (A)	40
Peak Non-Repetitive Surge Current (A)	3200
Peak Forward Voltage (V)	0.68
Peak Reverse Current (uA)	1700
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-247AC
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.7(Max)
Package Length	15.87(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
