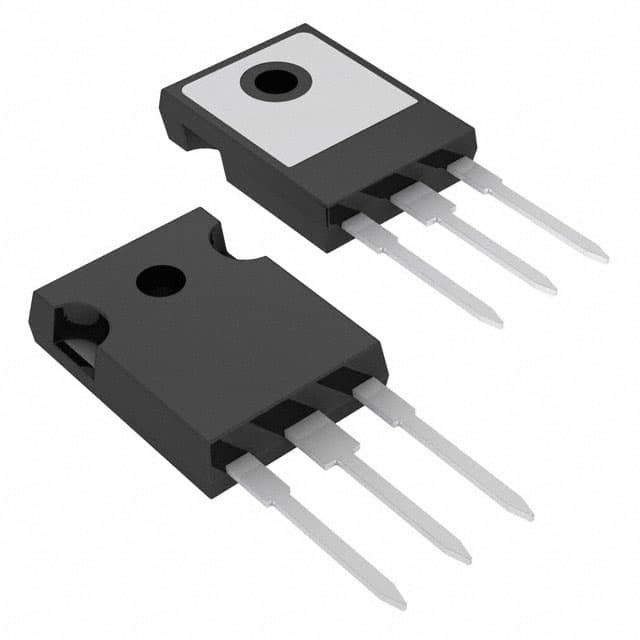

VS-30TPS12-M3

SKU: 158756

Manufacturer: Vishay

SCR 1200V 30A(RMS) 300A 3-Pin(3+Tab) TO-247AC Tube

20360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	500
Maximum Rate of Rise of On-State Current (A/us)	150
Maximum Gate Trigger Voltage (V)	2
Maximum Gate Trigger Current (mA)	45
Surge Current Rating (A)	300
Maximum Holding Current (mA)	150
Repetitive Peak Reverse Voltage (V)	1200
Maximum Gate Peak Inverse Voltage (V)	10
Peak On-State Voltage (V)	1.3@20A
Repetitive Peak Forward Blocking Voltage (V)	1200
Rated Average On-State Current (A)	20
RMS On-State Current (A)	30
Repetitive Peak Off-State Current (mA)	0.5
Phase Control	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	TO-247AC
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.7(Max)
Package Length	15.87(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
