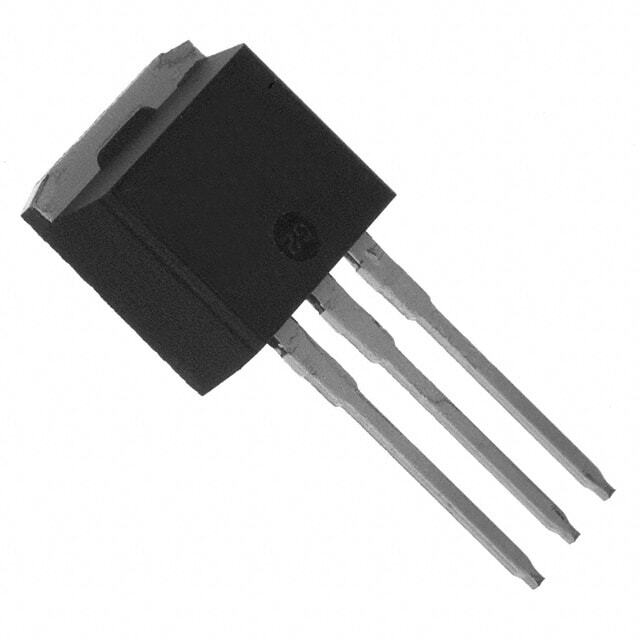

VS-20CTH03-1PBF

SKU: 72060

Manufacturer: Vishay

Rectifier Diode Switching 300V 20A 35ns Automotive 3-Pin(3+Tab) TO-262 Tube

3020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Type	Switching Diode
Maximum DC Reverse Voltage (V)	300
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	300
Maximum Continuous Forward Current (A)	20
Peak Non-Repetitive Surge Current (A)	120
Peak Forward Voltage (V)	1.25@10A
Peak Reverse Current (uA)	20
Peak Reverse Recovery Time (ns)	35
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tube
Supplier Temperature Grade	Automotive
Original Package	TO-262
Pin Count	3
Standard Package Method	I2PAK
Terminal Form	Through Hole
Package Height	9.65(Max)
Package Length	10.67(Max)
Package Width	4.83(Max)
PCB changed	3
Tab	Tab
