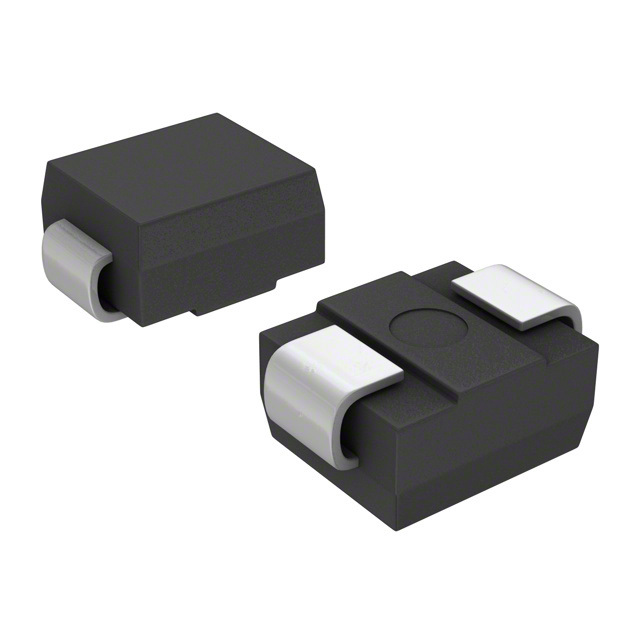

VS-10BQ060HM3/5BT

SKU: 108977

Manufacturer: Vishay

Rectifier Diode Schottky 60V 1A Automotive 2-Pin SMB T/R

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	60
Configuration	Single
Peak Reverse Repetitive Voltage (V)	60
Maximum Continuous Forward Current (A)	1
Peak Non-Repetitive Surge Current (A)	700
Peak Forward Voltage (V)	0.60@2A
Peak Reverse Current (uA)	100
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	SMB
Pin Count	2
Standard Package Method	DO-214-AA
Terminal Form	Surface Mount
Package Height	2.24(Max)
Package Length	4.57(Max)
Package Width	3.94(Max)
PCB changed	2
