VS-100BGQ100 Vishay

VS-100BGQ100

SKU: 116143

Manufacturer: Vishay

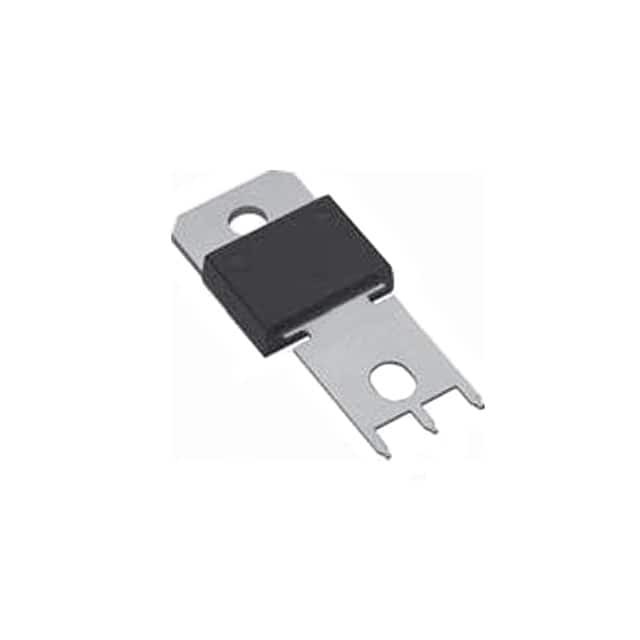

Diode Schottky 100V 100A 2-Pin(1+Tab) Power Tab

Request Free Samples

4190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	100
Configuration	Single
Peak Reverse Repetitive Voltage (V)	100
Maximum Continuous Forward Current (A)	100
Peak Non-Repetitive Surge Current (A)	6300
Peak Forward Voltage (V)	1.08
Peak Reverse Current (uA)	300
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	Power Tab
Pin Count	2
Terminal Form	Screw
Package Height	4.95(Max)
Package Length	15.9(Max)
Package Width	12.4(Max)
PCB changed	1
Tab	Tab
