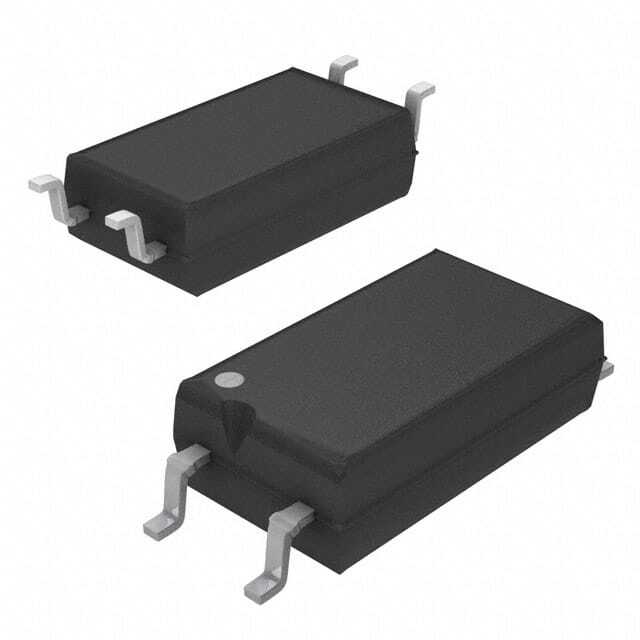

VOL617A-8X001T

SKU: 135773

Manufacturer: Vishay

Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin LSOP T/R

2840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5000
Operating Temperature-Min	-55
Operating Temperature-Max	110
Maximum Forward Voltage (V)	1.5
Collector-Emitter Voltage-Max (V)	80
Maximum Current Transfer Ratio (%)	260
Standard	VDE
Maximum Collector Current (mA)	50
Maximum Collector-Emitter Saturation Voltage (mV)	400
Maximum Power Dissipation (mW)	150
Typical Forward Voltage (V)	1.16
Maximum Forward Current (mA)	60
Packing Method	Tape and Reel
Minimum Current Transfer Ratio (%)	130
Current Transfer Ratio Test Current (mA)	5
Typical Rise Time (us)	3.5
Typical Fall Time (us)	5
Pin Count	4
Original Package	LSOP
Terminal Form	Surface Mount
Package Height	2
Package Length	4.1(Max)
Package Width	7.5
