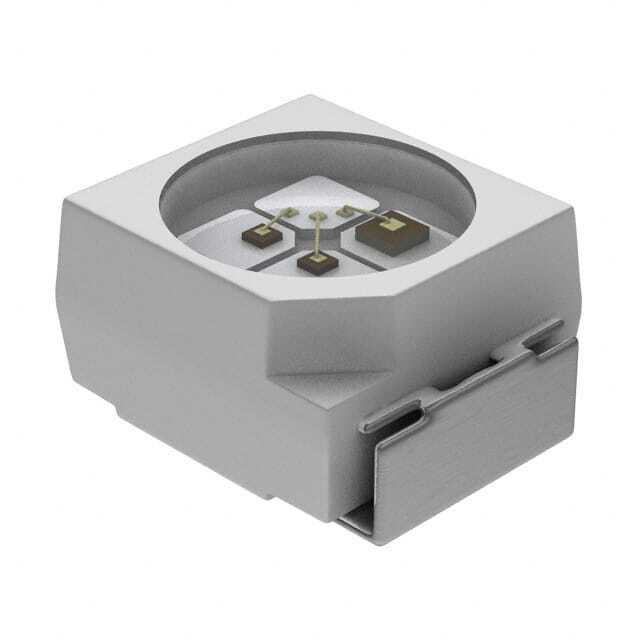

VLMD3100-GS08

SKU: 93133

Manufacturer: Vishay

LED Uni-Color Red 650nm Automotive 2-Pin PLCC T/R

1380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	Yes
PPAP	Unknown
Type	Uni-Color
Product Category	Chip LED
Color
Number of LEDs	1
LED Body Material	GaAlAs
Lens Shape Type	Circular
Lens Dimensions (mm)	2.4x2.4x0.85
Lens Appearance	Non Diffused
Mounting Orientation	Top Mount
Intensity	22mcd
Dominant Wavelength (nm)	648
Peak Wavelength (nm)	650
Viewing Angle (°)	120
Maximum Forward Current (mA)	30
Test Current (mA)	10
Maximum Forward Voltage (V)	2.2
Reverse Voltage (V)	6(Min)
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Automotive
Lead Standoff	No
Supplier Color	Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	PLCC
Pin Count	2
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Length	3
Package Width	2.8
PCB changed	2
