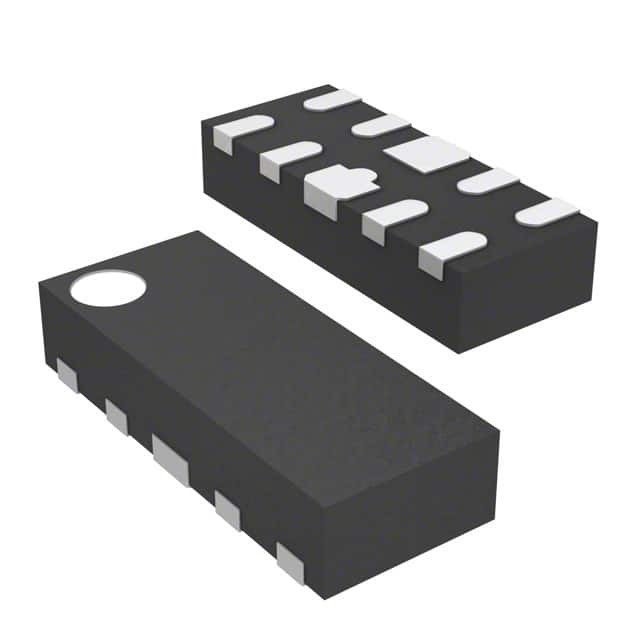

VBUS54GD-FBL-G3-08

SKU: 107295

Manufacturer: Vishay

ESD Suppressor Diode Diode Array Uni-Dir 5.5V 10-Pin LLP-M T/R

2040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Diode Array
Configuration	Quad
Direction Type	Uni-Directional
Number of Elements per pcs	4
Maximum Working Voltage (V)	5.5
Minimum Breakdown Voltage (V)	6.9
Maximum Breakdown Voltage (V)	8.7
Maximum Clamping Voltage (V)	15
Maximum Peak Pulse Current (A)	3
Maximum Leakage Current (uA)	0.1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	45
Capacitance Value (pF)	0.75
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Fail Safe Protection	No
Original Package	LLP-M
Pin Count	10
Standard Package Method	LLP
Terminal Form	Surface Mount
Package Height	0.51(Max)
Package Length	2.55(Max)
Package Width	1.05(Max)
PCB changed	10
