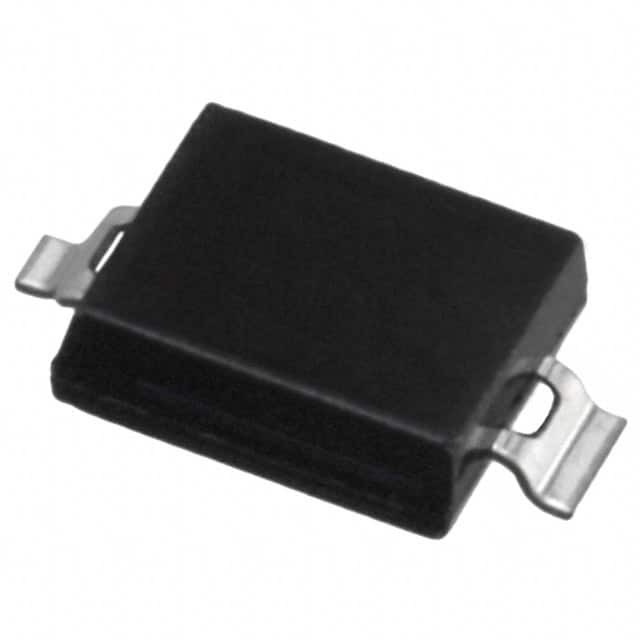

VBP104FAS

SKU: 121548

Manufacturer: Vishay

Photodiode PIN Chip 950nm 2-Pin SMD T/R

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.60.50
Automotive	No
PPAP	No
Type	Chip
Photodiode Type	PIN
Photodiode Body Material	Si
Polarity	Forward
Peak Wavelength (nm)	950
Maximum Rise Time (ns)	100(Typ)
Maximum Fall Time (ns)	100(Typ)
Maximum Light Current (uA)	35(Typ)
Maximum Dark Current (nA)	30
Maximum Forward Voltage (V)	1.3
Maximum Reverse Voltage (V)	60
Maximum Power Dissipation (mW)	215
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Tape and Reel
Standard Package Method	SMD
Original Package	SMD
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.2
Package Length	4.4
Package Width	3.9
