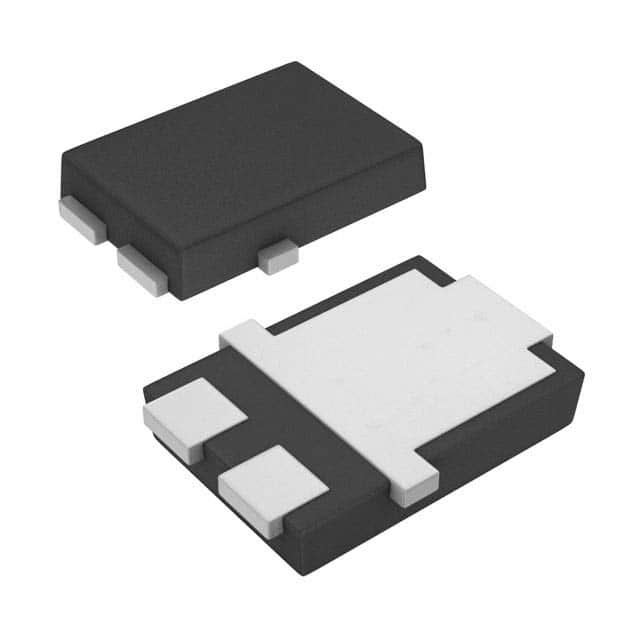

UH4PCC-M3/86A Vishay

UH4PCC-M3/86A

SKU: 128543

Manufacturer: Vishay

Diode Switching 150V 4A 3-Pin(2+Tab) SMPC T/R

Download sample

Request Free Samples

2060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	150
Maximum Continuous Forward Current (A)	4
Peak Non-Repetitive Surge Current (A)	40
Peak Forward Voltage (V)	1.05@2A
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	25
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Original Package	SMPC
Pin Count	3
Terminal Form	Surface Mount
Package Height	1.2(Max)
Package Length	4.35(Max)
Package Width	6.15(Max)
PCB changed	2
