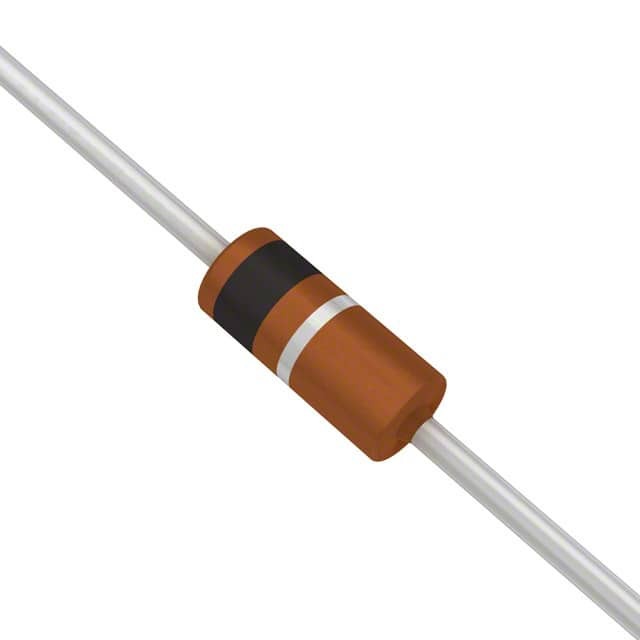

TZX5V1B-TAP

SKU: 57907

Manufacturer: Vishay

Zener Diode Single 5V 2% 100Ohm 500mW Automotive 2-Pin DO-35 Ammo

1600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	Yes
PPAP	Unknown
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	5
Zener Voltage Tolerance	2%
Maximum Forward Voltage (V)	1.5
Maximum Power Dissipation (mW)	500
Test Current (mA)	5
Maximum Reverse Leakage Current (uA)	5
Maximum Zener Impedance (Ohm)	100
Maximum Power Dissipation @ 25C (mW)	500
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Packing Method	Ammo
Product Weight (g)	0.125
Original Package	DO-35
Pin Count	2
Standard Package Method	DO-204-AH
Diameter	1.7(Max)
Terminal Form	Through Hole
Package Length	3.9(Max)
PCB changed	2
