TZMB33-GS08

SKU: 116067

Manufacturer: Vishay

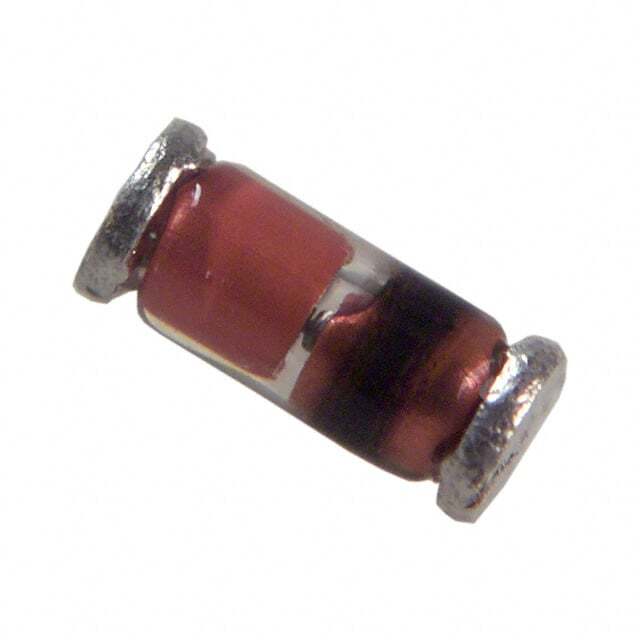

Zener Diode Single 33V 2% 80Ohm 500mW Automotive 2-Pin Mini-MELF SOD-80 T/R

11310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	Yes
PPAP	Unknown
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	33
Zener Voltage Tolerance	2%
Maximum Forward Voltage (V)	1.5
Maximum Power Dissipation (mW)	500
Test Current (mA)	5
Maximum Reverse Leakage Current (uA)	0.1
Maximum Zener Impedance (Ohm)	80
Maximum Power Dissipation @ 25C (mW)	500
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Automotive
Typical Voltage Temperature Coefficient	0.08%/K
Packing Method	Tape and Reel
Product Weight (g)	0.031
Original Package	Mini-MELF SOD-80
Pin Count	2
Standard Package Method	SOD
Diameter	1.6(Max)
Terminal Form	Surface Mount
Package Length	3.7(Max)
