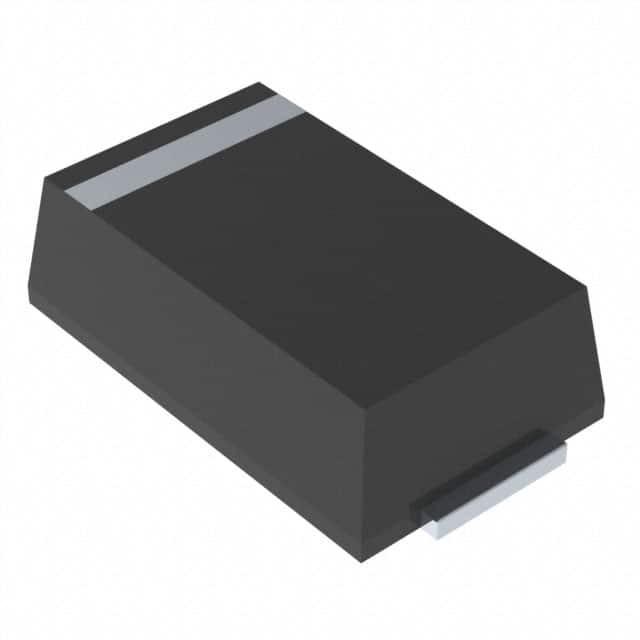

    TPSMP8.2AHE3/84A

    SKU: 87698
    Manufacturer: Vishay
    TVS Diode Single Uni-Dir 7.02V 300W Automotive 2-Pin SMP T/R
    2680 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Obsolete
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive Yes
    PPAP Unknown
    Configuration Single
    Direction Type Uni-Directional
    Number of Elements per pcs 1
    Minimum Breakdown Voltage (V) 7.79
    Maximum Clamping Voltage (V) 12.1
    Maximum Reverse Stand-Off Voltage (V) 7.02
    Maximum Peak Pulse Current (A) 24.8
    Maximum Reverse Leakage Current (uA) 50
    Test Current (mA) 10
    Peak Pulse Power Dissipation (W) 300
    Operating Temperature-Min -65
    Operating Temperature-Max 185
    Supplier Temperature Grade Automotive
    Packing Method Tape and Reel
    Original Package SMP
    Pin Count 2
    Standard Package Method DO-220-AA
    Terminal Form Surface Mount
    Package Height 1.15(Max)
    Package Length 3.61(Max)
    Package Width 2.18(Max)
    PCB changed 2
