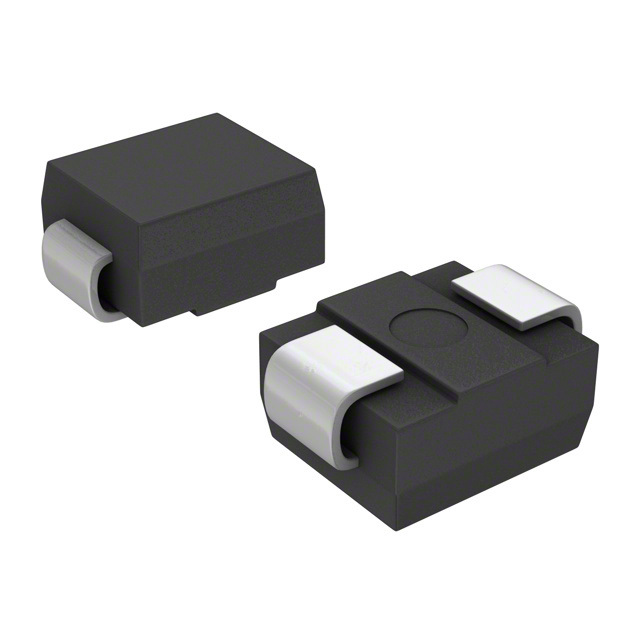

TPSMB16AHE3/52T

SKU: 80610

Manufacturer: Vishay

TVS Diode Single Uni-Dir 13.6V 600W Automotive 2-Pin SMB T/R

3190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	15.2
Maximum Clamping Voltage (V)	22.5
Maximum Reverse Stand-Off Voltage (V)	13.6
Maximum Peak Pulse Current (A)	26.7
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-65
Operating Temperature-Max	185
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SMB
Pin Count	2
Standard Package Method	DO-214-AA
Terminal Form	Surface Mount
Package Height	2.24(Max)
Package Length	4.57(Max)
Package Width	3.94(Max)
PCB changed	2
