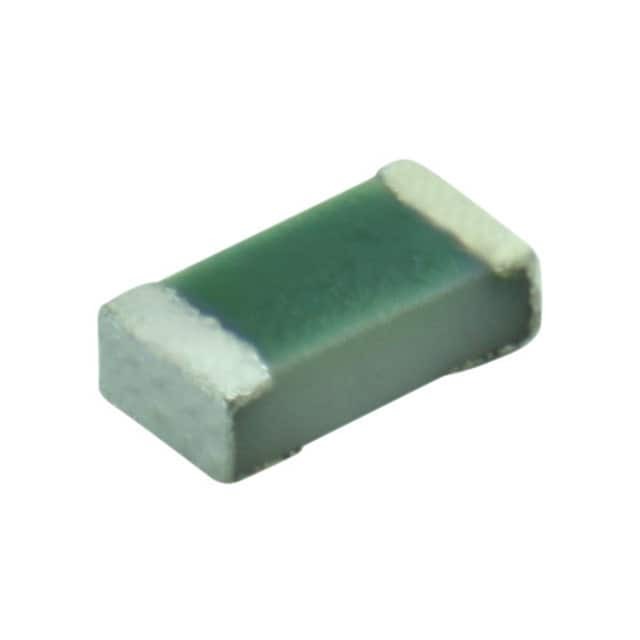

TNPW0402100KBEED

SKU: 158594

Manufacturer: Vishay

Res Thin Film 0402 100K Ohm 0.1% 0.063W(1/16W) ±25ppm/°C Sulfur Resistant Pad SMD Automotive Medical T/R

3930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.21.00.30
Automotive	Yes
PPAP	Yes
Resistance Value (Ohm)	100K
Tolerance	0.1%
Voltage Rating-Max (V)	50
Current Sensing	No
Power Rating (W)	0.063 (1/16)
Technology	Thin Film
Operating Temperature-Min	-55
Operating Temperature-Max	155
Temperature Coefficient (ppm/°C)	±25
Temperature Range @ Derated Power (°C)	70 to 155
Special Features	High Reliability
Fail Safe Fusible Resistor	No
Anti-Surge	No
Anti-Sulfurated	Yes
Case Style	Conformal Coated
Case Size	0402
Terminal Form	Pad
Number of Terminals	2
Packing Method	Tape and Reel
Package Type	SMD
Package Shape	Rectangular
Case Code - in	0402
Length (mm)	1
Depth (mm)	0.5
Height (mm)	0.35
Product Weight (g)	0.00065
Length Tolerance (mm)	±0.05
Depth Tolerance (mm)	±0.05
Height Tolerance (mm)	±0.05
