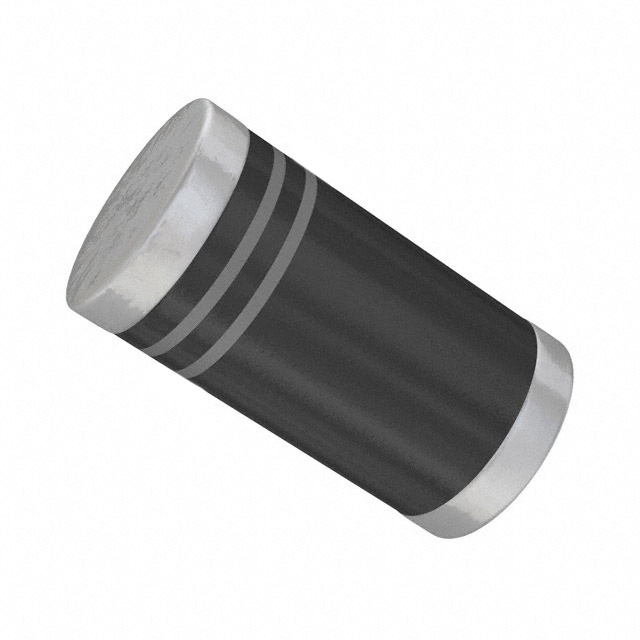

TGL41-22A-E3/96

SKU: 92673

Manufacturer: Vishay

TVS Diode Single Uni-Dir 18.8V 400W 2-Pin DO-213AB T/R

2040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	20.9
Maximum Clamping Voltage (V)	30.6
Maximum Reverse Stand-Off Voltage (V)	18.8
Maximum Peak Pulse Current (A)	13.1
Maximum Reverse Leakage Current (uA)	5
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	400
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DO-213AB
Pin Count	2
Standard Package Method	SOD-80
Diameter	2.67(Max)
Terminal Form	Surface Mount
Package Length	5.2(Max)
PCB changed	2
