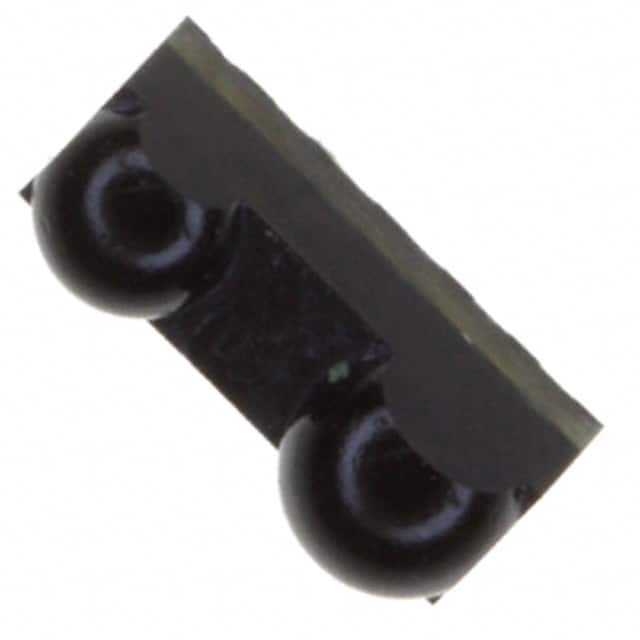

TFBS4711-TT1

SKU: 52462

Manufacturer: Vishay

IRDA TX/RX 0.1152Mbps 2.5V/3.3V/5V 6-Pin SMD T/R

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Type	TX/RX
Peak Wavelength (nm)	900(Max)
Maximum Data Rate (Mbps)	0.1152
Maximum Communication Distance (cm)	100(Typ)
Radiant Intensity (mW/sr)	60
Half Intensity Angle Degrees (°)	48
Pulse Width (us)	2
Maximum Rise Time (ns)	300
Maximum Fall Time (ns)	300
Maximum Forward Current (mA)	80
Operating Supply Voltage-Min (V)	2.4
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
LED Supply Voltage (V)	-0.5 to 6
Dimensions (mm)	6x3x1.9
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SMD
Original Package	SMD
Pin Count	6
Terminal Form	Surface Mount
Package Height	3
Package Length	6
Package Width	1.9
