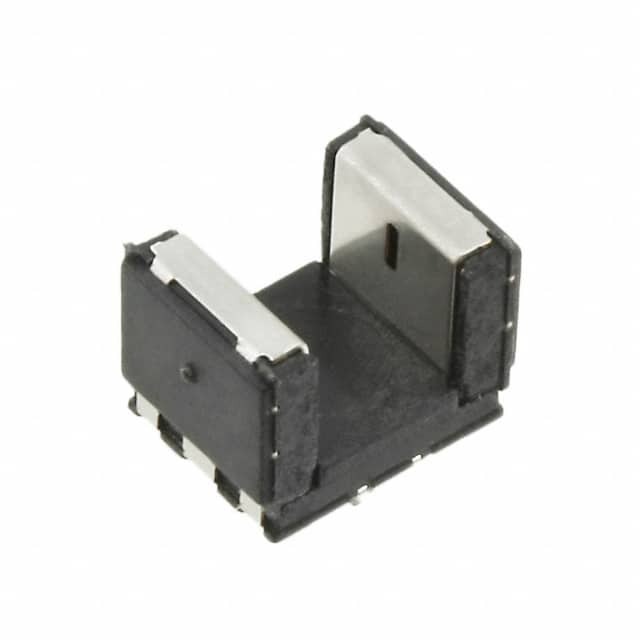

TCPT1300X01

SKU: 113952

Manufacturer: Vishay

Photointerrupter Transmissive 3mm Phototransistor Automotive 6-Pin SMD T/R

2810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.50
Automotive	Yes
PPAP	Unknown
Type	Transmissive
Number of Channels per Chip	1
Gap Width (mm)	3
Slit Width (mm)	0.3
Peak Wavelength (nm)	950
Maximum Rise Time (ns)	150000
Maximum Fall Time (ns)	150000
Output Device	Phototransistor
Maximum Forward Current (mA)	25
Maximum Collector Current (mA)	20
Collector-Emitter Voltage-Max (V)	20
Maximum Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	75
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	SMD
Original Package	SMD
Pin Count	6
Terminal Form	Surface Mount
Package Height	4
Package Length	4
Package Width	5
